Description
General part information
SBB8006-SS-1

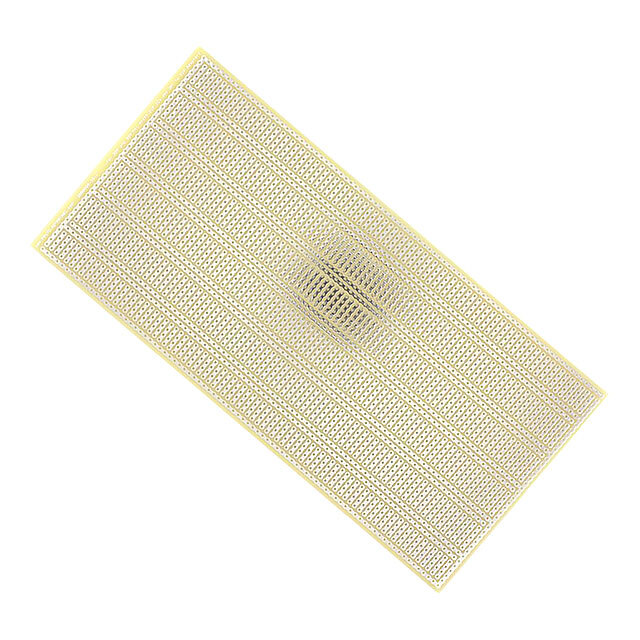

Breadboard, General Purpose Non-Plated Through Hole (NPTH) 5 Hole Pad (Single Side) 0.100" (2.54mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | SBB8006-SS-1 |
|---|---|
| Board Thickness | 0.063 in |
| Circuit Pattern | Hole Pad (Single Side) |
| Circuit Pattern Hole Count | 5 |
| Hole Diameter | 0.039 in |
| Material | FR4 Epoxy Glass |
| Pitch | 0.1 in |
| Plating | Non-Plated Through Hole (NPTH) |
| Proto Board Type | General Purpose, Breadboard |
| Size / Dimension Length | 8.4 in |
| Size / Dimension Width | 4.1 in |
