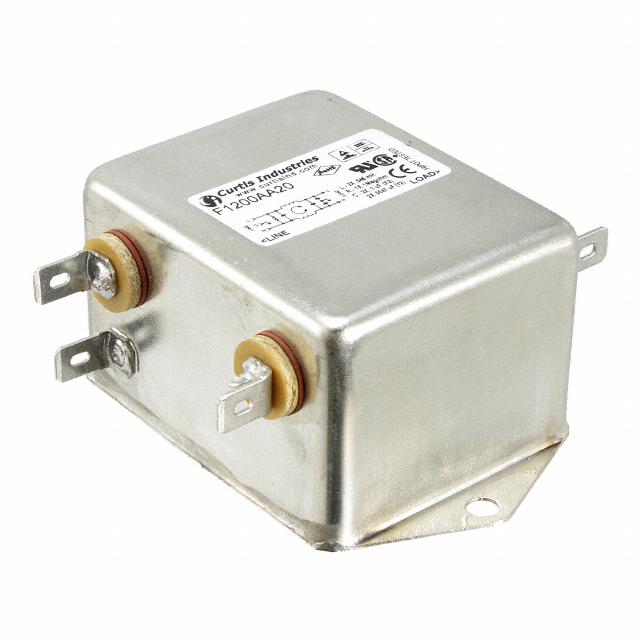

F1200AA20
ActiveCurtis Industries
LINE FILTER 250VAC 20A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F1200AA20
ActiveCurtis Industries
LINE FILTER 250VAC 20A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F1200AA20 | F1200A Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | TUV, CSA, UR, CE | TUV, CSA, UR, CE |
| Configuration | Single Stage | Single Stage |
| Current | 20 A | 1 - 20 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Mounting Type | Chassis Mount | Chassis Mount |
| Termination Style | Quick Connect | Quick Connect |
| Voltage - Rated AC | 250 V | 250 V |
F1200A Series
LINE FILTER 250VAC 1A CHASSIS
| Part | Current | Filter Type | Mounting Type | Frequency - Operating [Max] | Frequency - Operating [Min] | Configuration | Approval Agency | Termination Style | Applications | Voltage - Rated AC |
|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries F1200AA01 | 1 A | Single Phase | Chassis Mount | 60 Hz | 50 Hz | Single Stage | CE, CSA, TUV, UR | Quick Connect | General Purpose | 250 V |
Curtis Industries F1200AA03 | 3 A | Single Phase | Chassis Mount | 60 Hz | 50 Hz | Single Stage | CE, CSA, TUV, UR | Quick Connect | General Purpose | 250 V |
Curtis Industries F1200AA20 | 20 A | Single Phase | Chassis Mount | 60 Hz | 50 Hz | Single Stage | CE, CSA, TUV, UR | Quick Connect | General Purpose | 250 V |
Curtis Industries F1200AA06 | 6 A | Single Phase | Chassis Mount | 60 Hz | 50 Hz | Single Stage | CE, CSA, TUV, UR | Quick Connect | General Purpose | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.88 | |
| 10 | $ 24.07 | |||
| 25 | $ 23.27 | |||
| 50 | $ 22.47 | |||
| 100 | $ 20.06 | |||
| 250 | $ 19.86 | |||
Description
General part information
F1200A Series
Single Phase EMC/EMI Line Filter 20 A 250V 50/60Hz Single Stage Quick Connect
