2702901
ActivePhoenix Contact

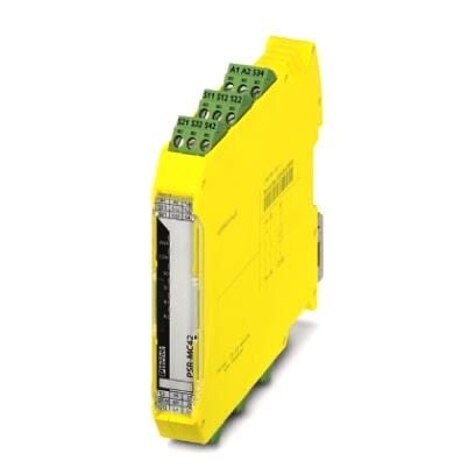

SAFETY RELAYS SAFETY RELAY W/ IO RFID NON-CONTACT
2702901
ActivePhoenix Contact
SAFETY RELAYS SAFETY RELAY W/ IO RFID NON-CONTACT
Description
General part information
2702901
SAFETY RELAYS SAFETY RELAY W/ IO RFID NON-CONTACT
Technical Specifications
Parameters and characteristics for this part
| Specification | 2702901 |
|---|---|
| Coil Current | 0.06 A |
| Coil Power | 1.44 W |
| Coil Resistance | 400 Ohms |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator, Diode |
| Form A Count | 2 |
| Mounting Type | DIN Rail |
| Operate Time | 250 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 250 VDC |
| Termination Style | Screw Terminal |
