896-084-558-812

Active

EDAC Inc.

CONN EDGE DUAL FMALE 84POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 100.67

Description

General part information

896-084 Series

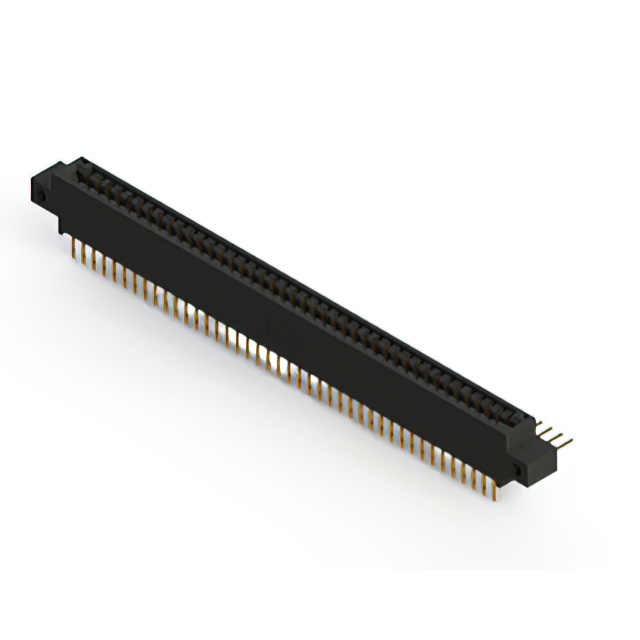

84 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-084-558-812	896-084 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	-	Card Extender
Flange Feature	Side Mount Opening, Unthreaded	Side Mount Opening, Unthreaded, M3, Threaded Insert, Top Mount Opening, 4-40, Floating Bobbin, Flush Mount, Side Opening, Top Opening
Flange Feature	3.25 mm	3.25 mm
Flange Feature	0.128 in	0.128 in
Flange Feature	-	2.95 - 3.96 mm
Flange Feature	-	0.116 - 0.156 in
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle	Through Hole, Board Edge, Straddle Mount, Through Hole, Right Angle
Number of Positions	84	84
Number of Positions/Bay/Row [custom]	42	42
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder, Wire Wrap, Solder Eyelet(s)
Termination Rows	2	2

896-084 Series

CONN EDGE DUAL FMALE 84POS 0.125

...

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Card Type	Contact Finish	Gender	Read Out	Number of Positions	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Material - Insulation	Flange Feature	Flange Feature	Flange Feature	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Termination	Contact Type	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 896-084-526-812	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Side Mount Opening, Unthreaded	3.25 mm	0.128 in	42	125 °C	-40 °C	2	Solder	Cantilever	2
EDAC Inc. 896-084-520-807	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	M3, Threaded Insert, Top Mount Opening			42	125 °C	-40 °C	2	Solder	Cantilever	2
EDAC Inc. 896-084-541-808	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	4-40, Threaded Insert, Top Mount Opening			42	125 °C	-40 °C	2	Wire Wrap	Cantilever	2
EDAC Inc. 896-084-522-201	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)				42	125 °C	-40 °C	2	Solder	Cantilever	2
EDAC Inc. 896-084-541-803	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Floating Bobbin, Top Mount Opening			42	125 °C	-40 °C	2	Wire Wrap	Cantilever	2	2.95 mm	0.116 in
EDAC Inc. 896-084-541-203	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Floating Bobbin, Flush Mount			42	125 °C	-40 °C	2	Wire Wrap	Cantilever	2	2.95 mm	0.116 in
EDAC Inc. 896-084-541-804	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Top Mount Opening, Unthreaded			42	125 °C	-40 °C	2	Wire Wrap	Cantilever	2	3.96 mm	0.156 in
EDAC Inc. 896-084-555-812	10 Áin	0.25 Ám	Board Edge, Straddle Mount	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Side Mount Opening, Unthreaded	3.25 mm	0.128 in	42	125 °C	-40 °C	2	Solder Eyelet(s)	Cantilever	2			Card Extender
EDAC Inc. 896-084-559-807	10 Áin	0.25 Ám	Through Hole, Right Angle	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	M3, Threaded Insert, Top Mount Opening			42	125 °C	-40 °C	2	Solder	Cantilever	2
EDAC Inc. 896-084-522-803	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	Female	Dual	84	0.125 in	3.18 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Polyphenylene Sulfide (PPS)	Floating Bobbin, Top Mount Opening			42	125 °C	-40 °C	2	Solder	Cantilever	2	2.95 mm	0.116 in
