3241089

Active

Phoenix Contact

HOSE 1.417" ID POLY 3.28' BLACK

Search across all available documentation for this part.

Active

Phoenix Contact

HOSE 1.417" ID POLY 3.28' BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.42

General part information

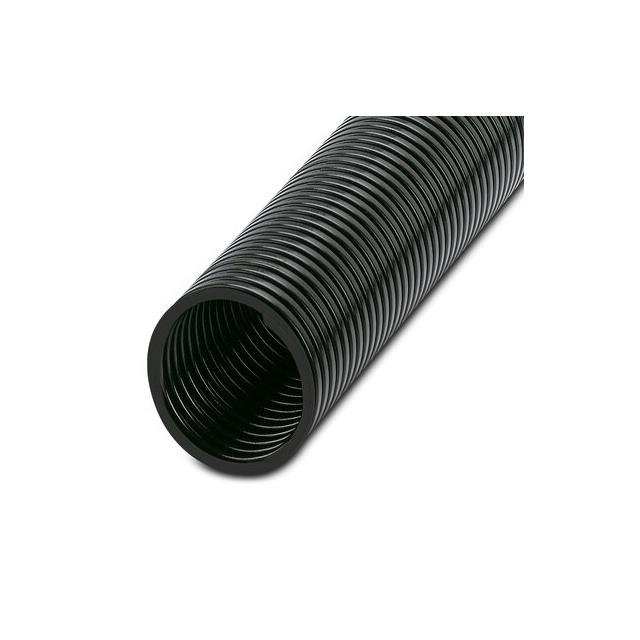

Black Polyamide (PA), Nylon, Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 1.417" (36.00mm) 3.28' (1.00m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3241089	WP-PA HF Series

Color	Black	Black
Diameter - Inside [diameter]	1.417 in	0.394 - 1.417 in
Diameter - Inside [diameter]	36 mm	10 - 36 mm
Diameter - Outside	-	13 mm
Diameter - Outside [diameter]	1.673 "	0.622 - 1.673 in
Diameter - Outside [diameter]	42.49 mm	0.512 - 42.49 mm
Environment Protection	UV Resistant	UV Resistant
Features	Acid Resistant, Airtight, Self Extinguishing, Solvent Resistant	Acid Resistant, Airtight, Self Extinguishing, Solvent Resistant
Length [x]	1 m	1 m
Length [x]	3.28 ft	3.28 ft
Liquid Protection	True, True, True	True
Material	Nylon, Polyamide (PA), Halogen Free	Nylon, Polyamide (PA), Halogen Free
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Type	Protective Hose, Wire Loom	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated	Convoluted, Corrugated

CABLE PROTECTION SYSTEMS, PROTECTIVE FLEXIBLE HOSE POLYAMIDE

Part	Material	Features	Liquid Protection	Environment Protection	Type Attributes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Type	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Length [x]	Length [x]
Phoenix Contact 3240682	Halogen Free, Nylon, Polyamide (PA)	Acid Resistant, Airtight, Self Extinguishing, Solvent Resistant	, ,	UV Resistant	Convoluted, Corrugated	15.8 mm	0.622 in	-40 °C	115 °C	UL94 V-0	Protective Hose, Wire Loom	Black	12 mm	0.472 in
Phoenix Contact 3240681	Halogen Free, Nylon, Polyamide (PA)	Acid Resistant, Airtight, Self Extinguishing, Solvent Resistant	, ,	UV Resistant	Convoluted, Corrugated	0.512 in		-40 °C	115 °C	UL94 V-0	Protective Hose, Wire Loom	Black	10 mm	0.394 "	13 mm
Phoenix Contact 3241089	Halogen Free, Nylon, Polyamide (PA)	Acid Resistant, Airtight, Self Extinguishing, Solvent Resistant	, ,	UV Resistant	Convoluted, Corrugated	42.49 mm	1.673 "	-40 °C	115 °C	UL94 V-0	Protective Hose, Wire Loom	Black	36 mm	1.417 in		1 m	3.28 ft
