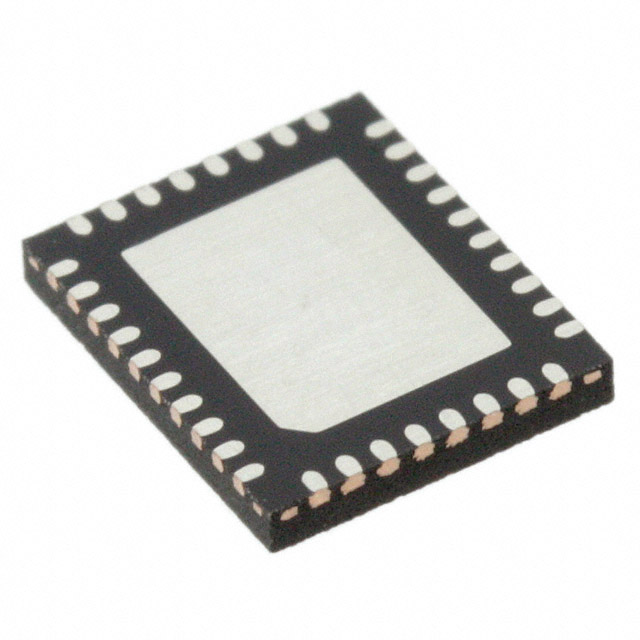

PI4ULS3V08ZFEX
ObsoleteDiodes Inc
IC TRANSLTR BIDIRECTIONAL 36TQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PI4ULS3V08ZFEX
ObsoleteDiodes Inc
IC TRANSLTR BIDIRECTIONAL 36TQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PI4ULS3V08ZFEX |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 4 |
| Data Rate | 180 Mbps |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Tri-State, Non-Inverted |
| Package / Case | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-TQFN (6x5) |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 3.6 V |
| Voltage - VCCA [Min] | 1.2 V |
| Voltage - VCCB [Max] | 3.6 V |
| Voltage - VCCB [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI4ULS3V08 Series
Voltage Level Translator Bidirectional 2 Circuit 4 Channel 180Mbps 36-TQFN (6x5)
