Description
General part information
BTPSCUSTU-4DLF-90M1P

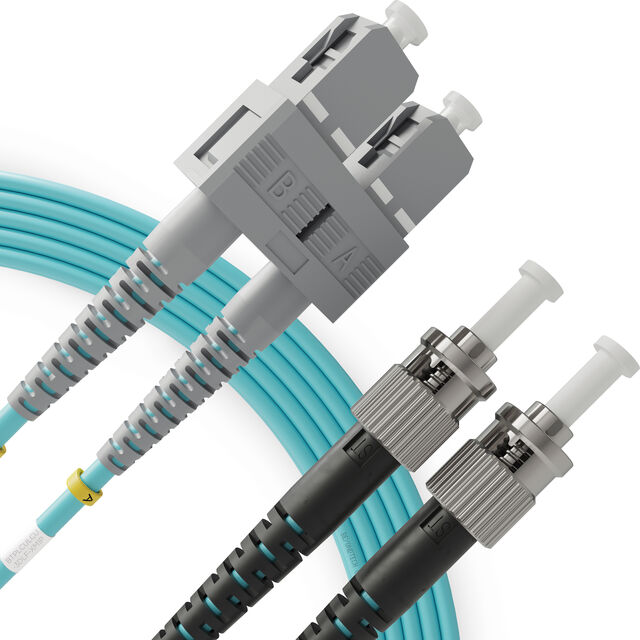

Cable Fiber Optic SC/UPC To ST/UPC OM4 295.3' (90.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | BTPSCUSTU-4DLF-90M1P |
|---|---|
| 1st Connector | SC/UPC |
| 2nd Connector | ST/UPC |
| Cable Type | Fiber Patch |
| Color - Cable | Aqua |
| Fiber Type | OM4 |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 295.3 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | OFNP |
| Type | OM4, Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
