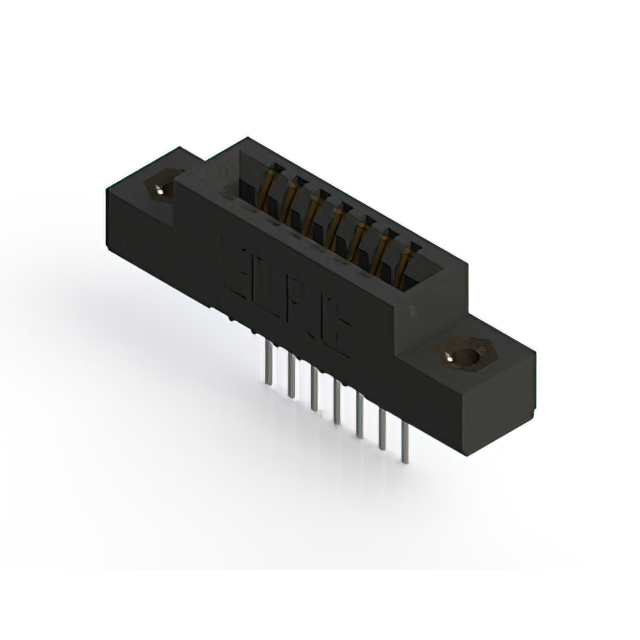

391-007-522-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 7POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-007-522-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 7POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-007-522-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
391-007 Series
| Part | Termination | Pitch [x] | Pitch [x] | Gender | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Material - Insulation | Mounting Type | Color | Read Out | Card Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows |
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows | ||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows |
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows |
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows | |||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows |
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Flush Mount M3 Threaded Insert Top Opening | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows | ||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows | |||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows | ||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | Female | Gold | -40 °C | 105 ░C | 7 | Copper Alloy | 10 Áin | 0.25 Ám | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | Through Hole | Black | Single | Non Specified - Single Edge | Semi Bellows |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
391-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
