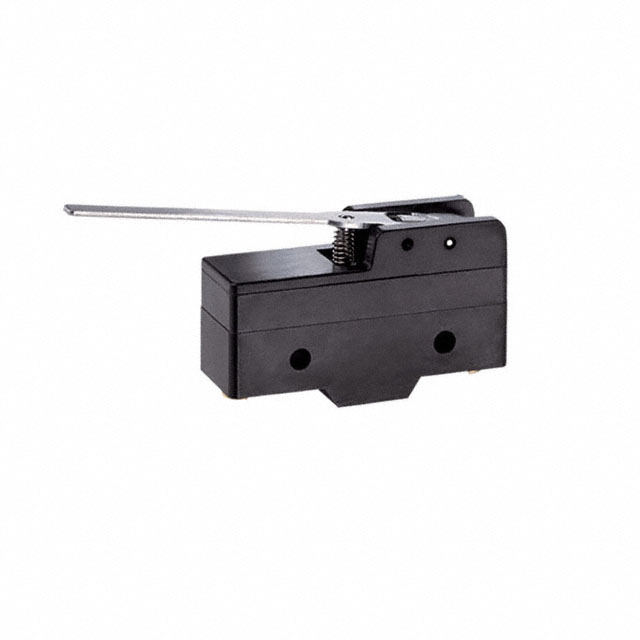

GPTBLS11
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GPTBLS11
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GPTBLS11 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 20 A |
| Differential Travel | 0.05 in |
| Differential Travel | 1.3 mm |
| Mechanical Life | 20000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 79 gf |
| Operating Position | 18.2 mm |
| Operating Position | 0.715 in |
| Overtravel | 5.6 mm |
| Overtravel | 0.219 in |
| Pretravel | 10 mm |
| Pretravel | 0.394 in |
| Release Force | 14 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 800 | $ 9.19 | |
Description
General part information
GPTBLS Series
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
