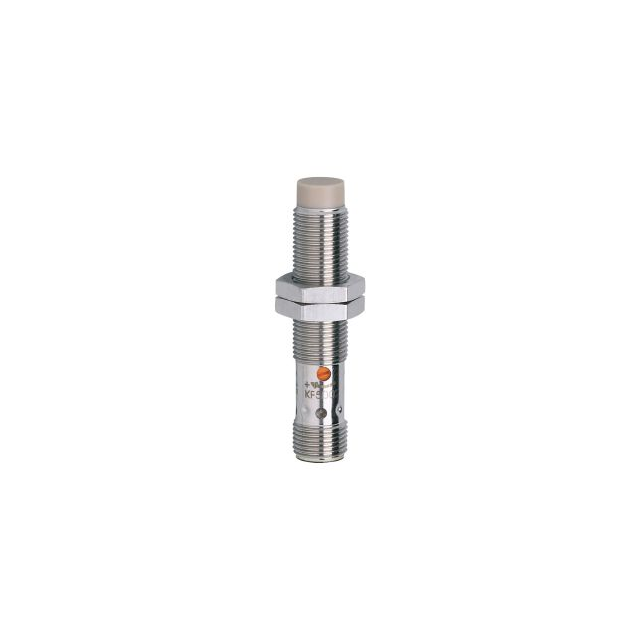

KF5002
Activeifm efector, inc.
SENSOR PROX CAPACITIV 3-12MM CYL
KF5002
Activeifm efector, inc.
SENSOR PROX CAPACITIV 3-12MM CYL
Description
General part information
KF5002
SENSOR PROX CAPACITIV 3-12MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | KF5002 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance Maximum | 0.472 " |
| Sensing Distance Minimum | 0.118 " |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
