STM32U585RIT3
ActiveULTRA-LOW-POWER WITH FPU ARM CORTEX-M33 MCU WITH TRUSTZONE, 160 MHZ WITH 2 MBYTES OF FLASH MEMORY
Deep-Dive with AI
Search across all available documentation for this part.
STM32U585RIT3
ActiveULTRA-LOW-POWER WITH FPU ARM CORTEX-M33 MCU WITH TRUSTZONE, 160 MHZ WITH 2 MBYTES OF FLASH MEMORY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STM32U585RIT3 | STM32U585RI Series |
|---|---|---|
| - | - | |
| Core Processor | ARM® Cortex®-M33 | ARM® Cortex®-M33 |
| Core Size | 32-Bit | 32-Bit |
| Data Converters | A/D 17x12/14b SAR, D/A 2x12b | A/D 17x12/14b SAR, D/A 2x12b, A/D 15x12/14b SAR |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 51 | 47 - 51 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | External, Internal | External, Internal |

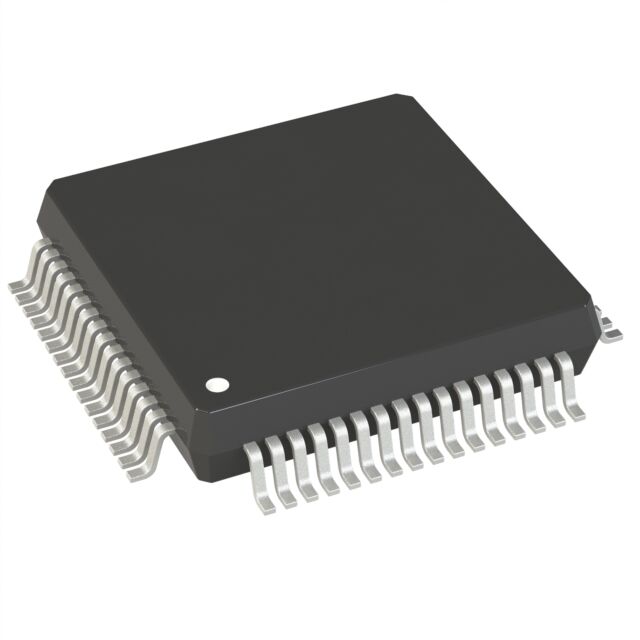

| Package / Case | 64-LQFP | 64-LQFP |
| Peripherals | Motor Control PWM, PWM, POR, WDT, Brown-out Detect/Reset, DMA | PWM, POR, DMA, Motor Control PWM, WDT, LCD, Brown-out Detect/Reset |
| Program Memory Size | 2 MB | 2 MB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 784 K | 784 K |
| Speed | 160 MHz | 160 MHz |
| Supplier Device Package | 64-LQFP (10x10) | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.71 V | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 960 | $ 5.86 | |
STM32U585RI Series
Ultra-low-power with FPU Arm Cortex-M33 MCU with TrustZone, 160 MHz with 2 Mbytes of Flash memory
| Part | Peripherals | Program Memory Size | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Speed | RAM Size | Core Processor | Number of I/O | Oscillator Type | Data Converters | Package / Case | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Program Memory Type | Core Size | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STM32U585RIT3TR | |||||||||||||||||
STMicroelectronics STM32U585RIT6 | |||||||||||||||||
STMicroelectronics STM32U585RIT3Q | |||||||||||||||||
STMicroelectronics STM32U585RIT3TR | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT | 2 MB | Surface Mount | -40 °C | 125 °C | 160 MHz | 784 K | ARM® Cortex®-M33 | 51 | External, Internal | A/D 17x12/14b SAR, D/A 2x12b | 64-LQFP | 3.6 V | 1.71 V | FLASH | 32-Bit | 64-LQFP (10x10) |
STMicroelectronics STM32U585RIT3 | |||||||||||||||||
STMicroelectronics STM32U585RIT6 | |||||||||||||||||
STMicroelectronics STM32U585RIT6QTR | |||||||||||||||||
STMicroelectronics STM32U585RIT6Q | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | 2 MB | Surface Mount | -40 °C | 85 °C | 160 MHz | 784 K | ARM® Cortex®-M33 | 47 | External, Internal | A/D 15x12/14b SAR, D/A 2x12b | 64-LQFP | 3.6 V | 1.71 V | FLASH | 32-Bit | 64-LQFP (10x10) |
STMicroelectronics STM32U585RIT6Q | |||||||||||||||||
STMicroelectronics STM32U585RIT6TR | |||||||||||||||||
STMicroelectronics STM32U585RIT3 | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | 2 MB | Surface Mount | -40 °C | 125 °C | 160 MHz | 784 K | ARM® Cortex®-M33 | 51 | External, Internal | A/D 17x12/14b SAR, D/A 2x12b | 64-LQFP | 3.6 V | 1.71 V | FLASH | 32-Bit | 64-LQFP (10x10) |
Description
General part information
STM32U585RI Series
The STM32U585xx devices belong to an ultra-low-power microcontrollers family (STM32U5 series) based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 160 MHz.
The Cortex®-M33 core features a single-precision FPU (floating-point unit), that supports all the Arm®single-precision data-processing instructions and all the data types.
The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a MPU (memory protection unit) that enhances the application security.
