14382-10PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 10P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 10P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	14382-10PG-300

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut, Flange
Number of Positions	10
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

CONN RCPT MALE 10P GOLD SLDR CUP

Part	Contact Material	Contact Finish - Mating	Connector Type	Color	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shielding	Mounting Feature	Orientation	Number of Positions	Ingress Protection	Voltage Rating
Conxall/Switchcraft 14382-10PG-300	Brass	Gold	Male Pins, Receptacle	Black	Plastic	-40 °C	115 °C	Bayonet Lock	Unshielded	Bulkhead - Front Side Nut, Flange	Keyed	10	Weathertight	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

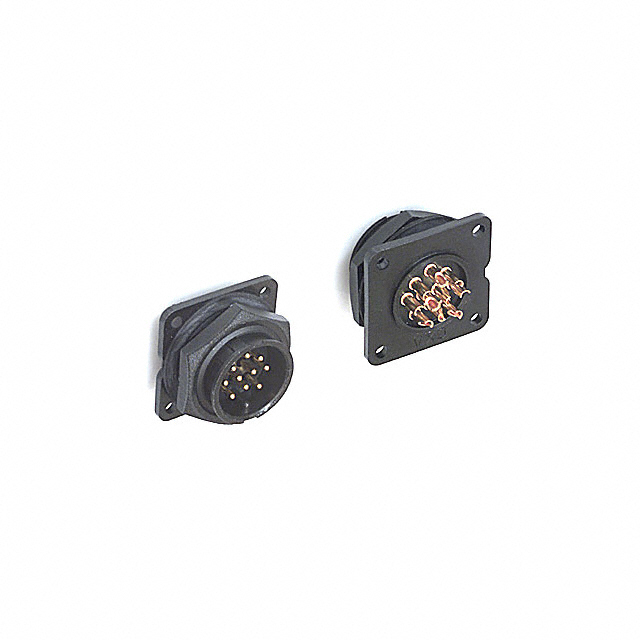

10 Position Circular Connector Receptacle, Male Pins Solder Cup
