CS-DSDMDB25MF-025
ActiveAMPHENOL CABLES ON DEMAND

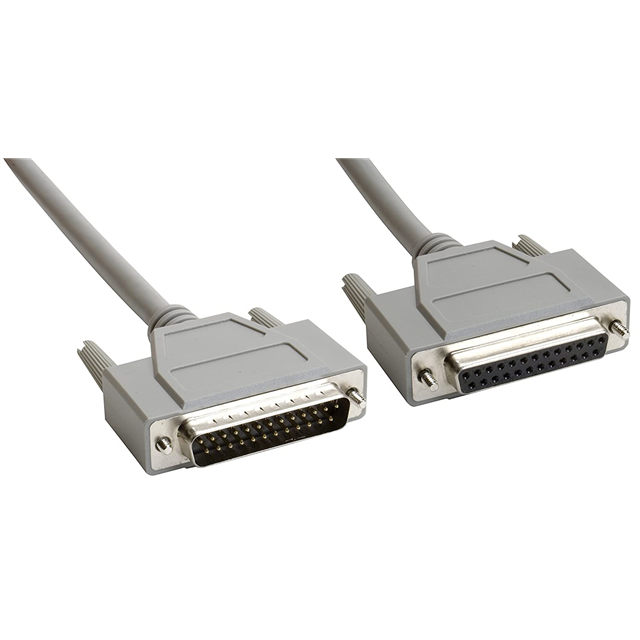

COMPUTER CABLE, D SUB 25 POSITION PLUG, D SUB 25 POSITION RECEPTACLE, 25 FT, 7.62 M, GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS-DSDMDB25MF-025
ActiveAMPHENOL CABLES ON DEMAND
COMPUTER CABLE, D SUB 25 POSITION PLUG, D SUB 25 POSITION RECEPTACLE, 25 FT, 7.62 M, GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CS-DSDMDB25MF-025 | CS-DSDMDB2 Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Plug, Male Pins, Receptacle, Female Sockets |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | Gray, Individual (Round) | Gray, Individual (Round) |
| Contact Finish | Gold | Gold |
| Length | - | 1.52 - 3.05 m |
| Length | - | 5 - 10 ' |
| Length [x] | 25 ft | 15 - 30 " |
| Length [x] | 7.62 m | 4.57 - 762 mm |
| Shielding | Shielded | Shielded |
| Type | DB25 | DB25 |
CS-DSDMDB2 Series
COMPUTER CABLE, D SUB 25 POSITION PLUG, D SUB 25 POSITION PLUG, 5 FT, 1.5 M, GRAY
| Part | 1st Connector | Length | Length | 2nd Connector | Type | Color | Shielding | Contact Finish | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL CABLES ON DEMAND CS-DSDMDB25MM-005 | Plug, Male Pins | 1.52 m | 5 ' | Plug, Male Pins | DB25 | Gray, Individual (Round) | Shielded | Gold | ||
AMPHENOL CABLES ON DEMAND CS-DSDMDB25MF-002.5 | Female Sockets, Receptacle | Plug, Male Pins | DB25 | Gray, Individual (Round) | Shielded | Gold | 762 mm | 30 " | ||
AMPHENOL CABLES ON DEMAND CS-DSDMDB25MF-005 | Female Sockets, Receptacle | 1.52 m | 5 ' | Plug, Male Pins | DB25 | Gray, Individual (Round) | Shielded | Gold | ||
AMPHENOL CABLES ON DEMAND CS-DSDMDB25MM-002.5 | Plug, Male Pins | Plug, Male Pins | DB25 | Gray, Individual (Round) | Shielded | Gold | 762 mm | 30 " | ||
AMPHENOL CABLES ON DEMAND CS-DSDMDB25MF-025 | Female Sockets, Receptacle | Plug, Male Pins | DB25 | Gray, Individual (Round) | Shielded | Gold | 7.62 m | 25 ft | ||
AMPHENOL CABLES ON DEMAND CS-DSDMDB25MM-015 | Plug, Male Pins | Plug, Male Pins | DB25 | Gray, Individual (Round) | Shielded | Gold | 4.57 m | 15 ft | ||
AMPHENOL CABLES ON DEMAND CS-DSDMDB25MF-010 | Female Sockets, Receptacle | 3.05 m | 10 ft | Plug, Male Pins | DB25 | Gray, Individual (Round) | Shielded | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CS-DSDMDB2 Series
D-Sub Cable Assembly DB25 Gray, Individual (Round) 25.00' (7.62m) Receptacle, Female Sockets to Plug, Male Pins Shielded
