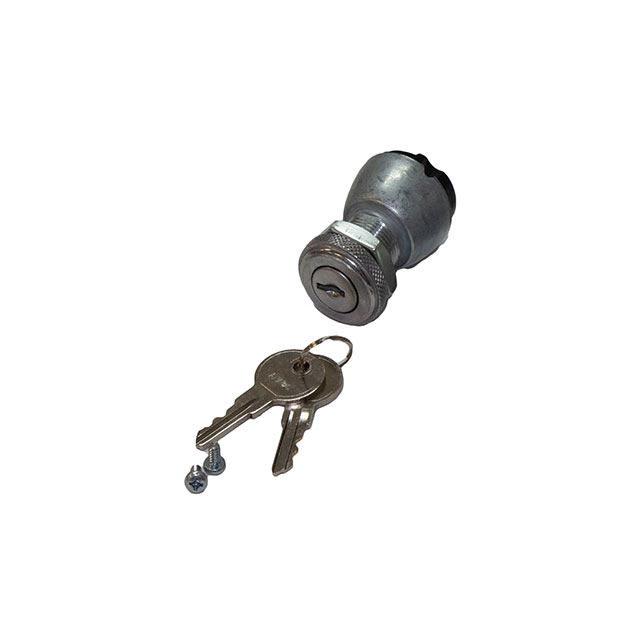

HDI3-2B-1-B

Active

Switch Components

SWITCH KEYLOCK 2POS SPST 10A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH KEYLOCK 2POS SPST 10A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	HDI3-2B-1-B

Actuator Type	Flat Key
Circuit	SPST
Contact Material	Bronze
Contact Timing	Not Specified
Current Rating (Amps)	10 A
Key Removable Positions	2
Number of Positions	2
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

SWITCH KEYLOCK 2POS SPST 10A 12V

Part	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Contact Timing	Key Removable Positions	Circuit	Number of Positions	Actuator Type	Contact Material	Termination Style	Panel Cutout Dimensions [diameter]
Switch Components HDI3-2B-1-B	On-Off	12 V	10 A	Not Specified	2	SPST	2	Flat Key	Bronze	Screw Terminal	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.52

General part information

Keylock Switch 2 Position SPST 10A (DC) AC 12 VDC Panel Mount
