AMHS001313138R2LA6
ActivePulse Electronics
INDUCTOR POWER
AMHS001313138R2LA6
ActivePulse Electronics
INDUCTOR POWER
Description
General part information
AMHS001313138R2LA6

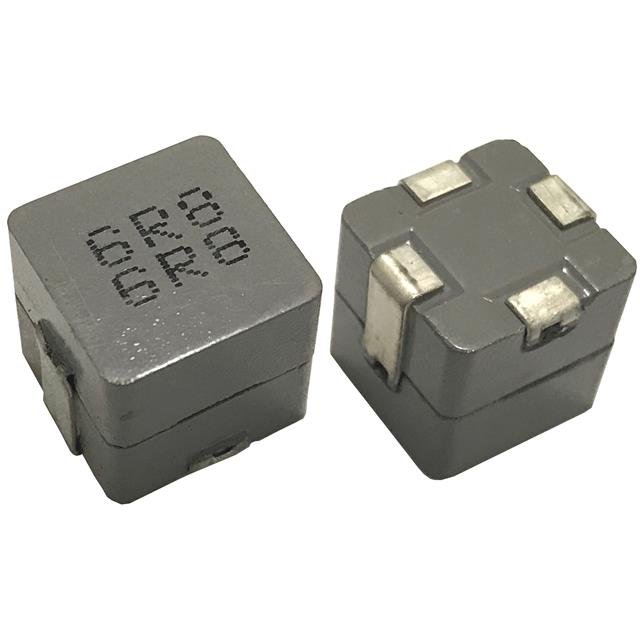

8.2 µH Shielded Drum Core, Wirewound Inductor 10 A 16mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AMHS001313138R2LA6 |
|---|---|
| Current - Saturation (Isat) | 25 A |
| Current Rating | 10 A |
| DC Resistance (DCR) | 16 mOhm |
| Height - Seated (Max) | 0.512 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.543 in |
| Size / Dimension Width | 0.543 in |
| Tolerance | 15 % |
| Type | Drum Core, Wirewound |
