1457979
ActivePhoenix Contact

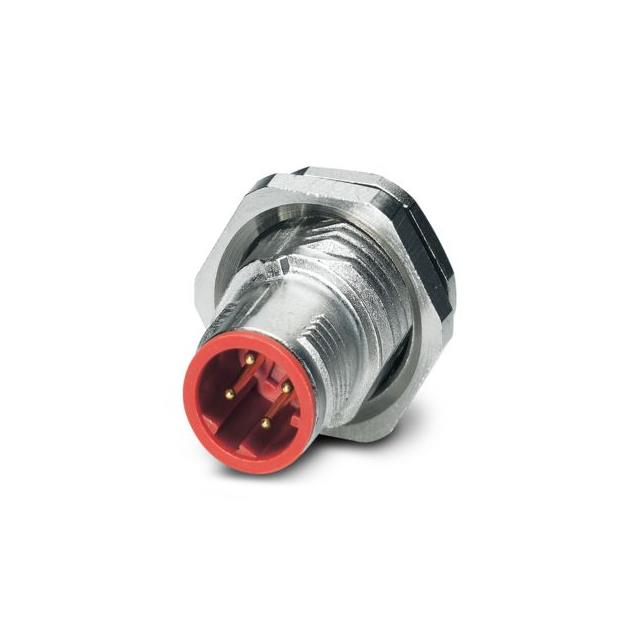

CONN PLUG MALE 4POS GOLD SOLDER
1457979
ActivePhoenix Contact
CONN PLUG MALE 4POS GOLD SOLDER
Description
General part information
1457979
4 Position Circular Connector Plug, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1457979 |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 4 A |
| Fastening Type | Push-Twist |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 4 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-4 |
| Termination | Solder |
| Voltage Rating | 250 V |
