PEWGS6042
ObsoletePasternack

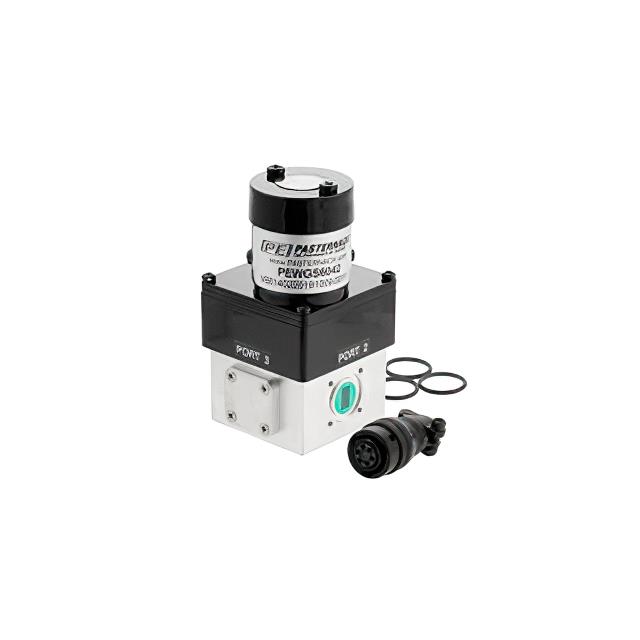

WR-34 WAVEGUIDE ELECTROMECHANICA
PEWGS6042
ObsoletePasternack
WR-34 WAVEGUIDE ELECTROMECHANICA
Description
General part information
PEWGS6042
RF Switch IC Radar, VSAT SPDT, DPDT
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWGS6042 |
|---|---|
| Circuit | SPDT, DPDT |
| Frequency Range (Max) | 33 GHz |
| Frequency Range (Min) | 22 GHz |
| Insertion Loss (max) | 0.15 dB |
| Isolation (Min) | 60 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | VSAT, Radar |
| Topology | Reflective |
| Voltage - Supply (Maximum) | 20 V |
| Voltage - Supply (Minimum) | 10 VDC |
