B1501TW--20P001013U1930
ActiveHarvatek Corporation

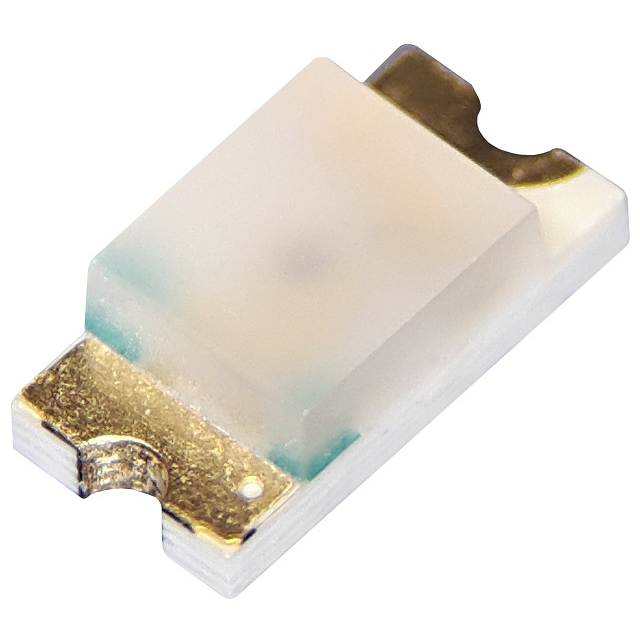

LED WHITE 1206 SMD
B1501TW--20P001013U1930
ActiveHarvatek Corporation
LED WHITE 1206 SMD
Description
General part information
B1501TW--20P001013U1930
White LED Indication - Discrete 3.2V 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B1501TW--20P001013U1930 |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) | 1.2 mm |
| Lens Length | 2 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Width | 1.6 mm |
| Millicandela Rating | 180 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 1.6 mm |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
