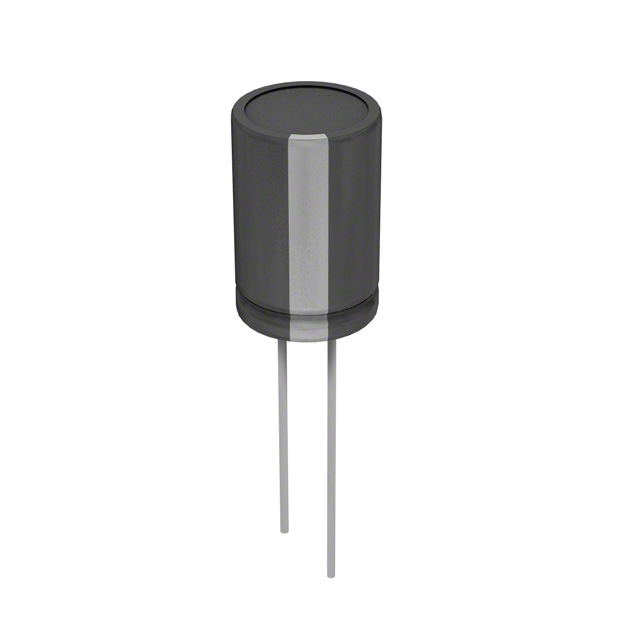

SXR331M010ST
ObsoleteCornell Dubilier Knowles
CAP ALUM 330UF 20% 10V RADIAL TH
SXR331M010ST
ObsoleteCornell Dubilier Knowles
CAP ALUM 330UF 20% 10V RADIAL TH
Description
General part information
SXR331M010ST
330 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 760mOhm @ 120Hz 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SXR331M010ST |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 760 mOhm |
| Height - Seated (Max) | 0.472 in |
| Lead Spacing | 0.138 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 240 mA, 400 mA |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
