Description
General part information

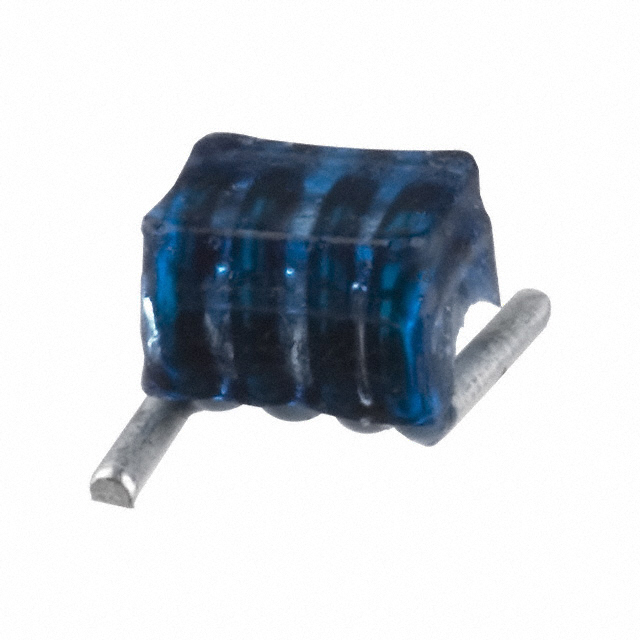

4426-10NC
43 nH Unshielded Wirewound Inductor 3 A Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 4426-10NC |
|---|---|
| Current Rating | 3 A |
| Frequency - Self Resonant | 1.5 GHz |
| Height - Seated (Max) | 0.125 in |
| Inductance | 43 nH |
| Inductance Frequency - Test | 150 MHz |
| Material - Core | Air |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Q | 106 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.145 in |
| Size / Dimension Width | 0.12 in |
| Tolerance | 5 % |
| Type | Wirewound |
