1376383-1

Active

TE Connectivity AMP Connectors

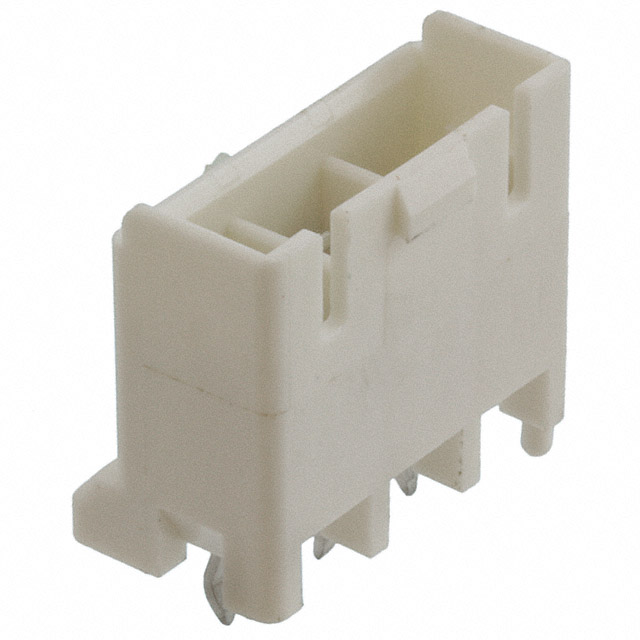

CONN HEADER VERT 3POS 5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 3POS 5MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 3 position 0.197" (5.00mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1376383-1	1376383 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Guide	Board Guide
Insulation Color	Natural	Red, Natural
Insulation Height	14.1 mm	14.1 mm
Insulation Height	0.555 in	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	19.4 mm	19.4 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	5 mm	5 mm
Pitch - Mating	0.197 "	0.197 "
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Solder, Kinked Pin, Solder
Voltage Rating	300 VAC	300 VAC

CONN HEADER VERT 3POS 5MM

Part	Shrouding	Contact Length - Post	Contact Length - Post	Features	Mated Stacking Heights	Applications	Number of Rows	Contact Material	Voltage Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height	Insulation Height	Contact Shape	Insulation Color	Insulation Material	Contact Type	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Material Flammability Rating	Style
TE Connectivity AMP Connectors 6-1376383-2	Shrouded - 4 Wall	3.5 mm	0.138 in	Board Guide	19.4 mm	General Purpose	1	Copper Alloy	300 VAC	Locking Ramp	5 mm	0.197 "	Tin	Solder	-40 °C	105 ░C	Header	14.1 mm	0.555 in	Rectangular	Red	Polyamide (PA66), Nylon 6/6, Glass Filled	Tab	Through Hole	All	Varies by Wire Gauge	UL94 V-0	Board to Cable/Wire
TE Connectivity AMP Connectors 1376383-1	Shrouded - 4 Wall	3.5 mm	0.138 in	Board Guide	19.4 mm	General Purpose	1	Copper Alloy	300 VAC	Locking Ramp	5 mm	0.197 "	Tin	Kinked Pin, Solder	-40 °C	105 ░C	Header	14.1 mm	0.555 in	Rectangular	Natural	Polyamide (PA66), Nylon 6/6, Glass Filled	Tab	Through Hole	All	Varies by Wire Gauge	UL94 V-0	Board to Cable/Wire
