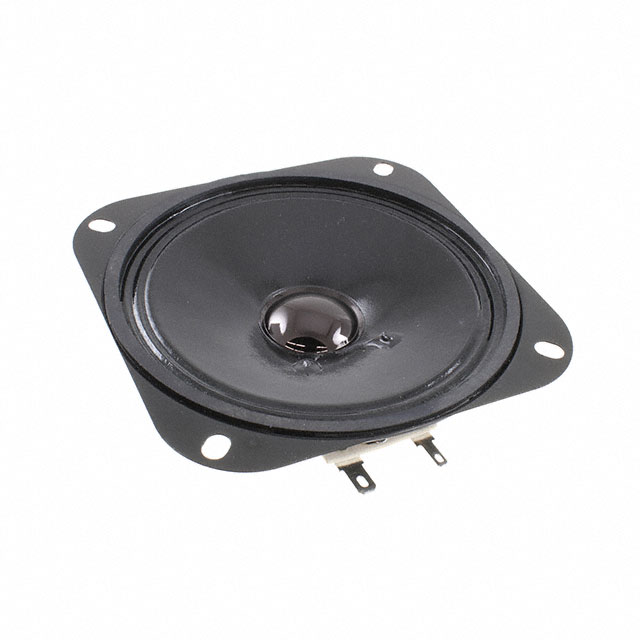

R 10 ND - 8 OHM
ActiveVisaton GmbH & Co. KG
SPEAKER 8OHM TOP PORT 84DB
R 10 ND - 8 OHM
ActiveVisaton GmbH & Co. KG
SPEAKER 8OHM TOP PORT 84DB
Description
General part information
R 10 ND - 8 OHM
8 Ohms General Purpose Speaker 120 Hz ~ 16 kHz Top Round, Square Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | R 10 ND - 8 OHM |
|---|---|
| Efficiency - dBA | 84 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 165 Hz |
| Frequency Range (Max) | 16 kHz |
| Frequency Range (Min) | 120 Hz |
| Height - Seated (Max) | 1.398 in |
| Impedance | 8 Ohm |
| Ingress Protection | Waterproof |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Power - Max | 20 W |
| Shape | Round, Square Frame |
| Size / Dimension Length | 4.016 in |
| Size / Dimension Width | 4.016 in |
| Technology | Magnetic |
| Termination | Quick Connect |
| Type | General Purpose |
