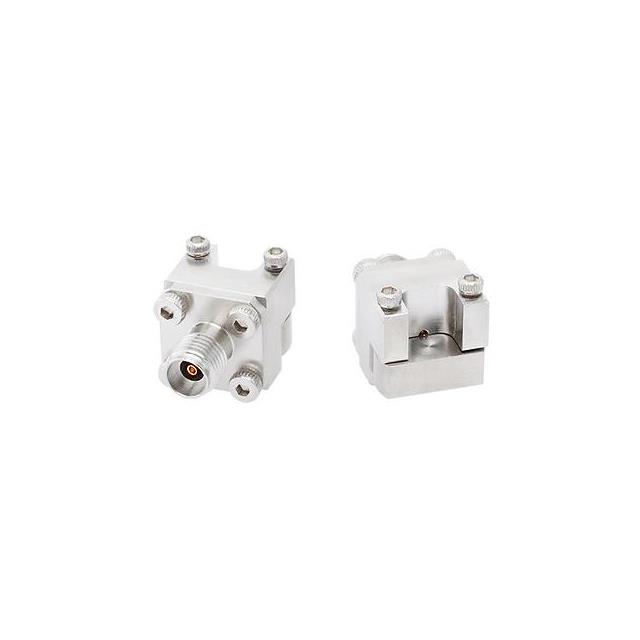

EL03FS001

Active

WITHWAVE CO LTD

END LAUNCH 2.92 MM CONNECTOR(DC

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

END LAUNCH 2.92 MM CONNECTOR(DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression

Technical documentation and resources

Part	Frequency - Max [Max]	Contact Termination	Connector Type	Impedance	Shield Termination	Connector Style	Mounting Type	Number of Ports	Body Material	Center Contact Material	Center Contact Plating
WITHWAVE CO LTD EL03FS002	40 GHz	Compression	Female Socket, Receptacle	50 Ohms	Screw	2.92 mm	Board Edge, End Launch	1	Stainless Steel	Beryllium Copper	Gold
WITHWAVE CO LTD EL03FS001	40 GHz	Compression	Female Socket, Receptacle	50 Ohms	Screw	2.92 mm	Board Edge, End Launch	1	Stainless Steel	Beryllium Copper	Gold
