0840CDMCCDS-1R5MC
ActiveSumida America Components Inc.
FIXED IND 1.5UH 13A 8.4MOHM SMD
0840CDMCCDS-1R5MC
ActiveSumida America Components Inc.
FIXED IND 1.5UH 13A 8.4MOHM SMD
Description
General part information
0840CDMCCDS-1R5MC

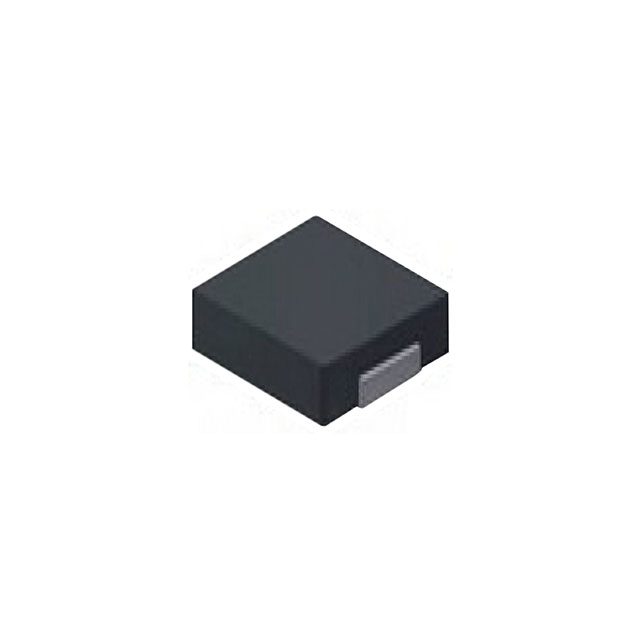

1.5 µH Shielded Molded Inductor 13 A 8.4mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 0840CDMCCDS-1R5MC |
|---|---|
| Current - Saturation (Isat) | 13 A |
| Current Rating | 13 A |
| DC Resistance (DCR) (Max) | 8.4 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.319 in |
| Size / Dimension Width | 0.307 in |
| Tolerance | 20 % |
| Type | Molded |
