PCA.0S.302.CLLC37
ActiveLEMO

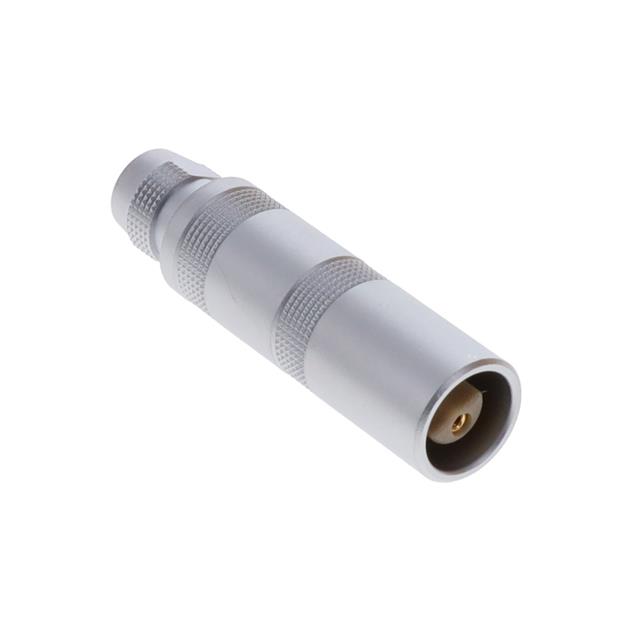

CONN CIRC RCPT 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCA.0S.302.CLLC37
ActiveLEMO
CONN CIRC RCPT 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PCA.0S.302.CLLC37 | PCA.0S Series |
|---|---|---|
| - | - | |
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | 178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174 |
| Cable Opening | - | 0.051 - 0.067 in |
| Cable Opening | - | 1.3 - 4.2 mm |
| Cable Opening | - | 2.2 - 5.7 mm |
| Cable Opening | - | 0.087 - 0.126 in |
| Cable Opening | - | 0.165 - 0.205 in |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 4.2 mm |
| Cable Opening | - | 0.205 - 0.224 in |
| Cable Opening [Max] [custom] | 3.7 mm | 2.2 - 6.2 mm |
| Cable Opening [Max] [custom] | 0.146 in | 0.087 - 0.244 in |
| Cable Opening [Min] [custom] | 0.126 in | 0.051 - 0.224 in |
| Cable Opening [Min] [custom] | 3.2 mm | 1.3 - 5.7 mm |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver |
| Connector Style | - | Triaxial, Coaxial |
| Connector Type | Female Sockets, Male Pins, Receptacle | Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets, Insert, Female Socket |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze, Brass | Bronze, Brass, Alumel, Chromel, Constantan, Copper |
| Contact Termination | - | Solder |
| Current Rating (Amps) | 10 A | 4 - 10 A |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell, Insert Only, Requires Shell |
| Housing Color | - | Silver |
| Impedance | - | 50 Ohms |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | - | 1000 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | - | 1 |
| Number of Positions | 2 | 1 - 4 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 302 | 302 - 403 |
| Shield Termination | - | Clamp |
| Shielding | Shielded | Shielded |
PCA.0S Series
CONN CIRC RCPT 4P GOLD SLDR CUP
| Part | Shell Finish | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Orientation | Features | Shell Size - Insert | Primary Material | Ingress Protection | Fastening Type | Material Flammability Rating | Mounting Type | Contact Material | Insert Material | Connector Type | Color | Current Rating (Amps) | Shielding | Shell Material | Number of Positions | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Max] [custom] | Shield Termination | Mating Cycles | Contact Termination | Body Material | Impedance | Center Contact Material | Body Finish | Connector Style | Housing Color | Dielectric Material | Center Contact Plating | Number of Ports | Cable Group | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 304 | Metal | IP50 | Push-Pull | UL94 V-0 | Free Hanging (In-Line) | Brass, Bronze | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Silver | 7 A | Shielded | Brass | 4 | ||||||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 302 | Metal | IP50 | Push-Pull | UL94 V-0 | Free Hanging (In-Line) | Brass, Bronze | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Silver | 10 A | Shielded | Brass | 2 | 0.051 in, 0.067 in | 1.3 mm, 1.7 mm | ||||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 302 | Metal | IP50 | Push-Pull | UL94 V-0 | Free Hanging (In-Line) | Brass, Bronze | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Silver | 10 A | Shielded | Brass | 2 | 2.2 mm, 3.2 mm | 0.087 in, 0.126 in | ||||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 302 | Metal | IP50 | Push-Pull | UL94 V-0 | Free Hanging (In-Line) | Brass, Bronze | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Silver | 10 A | Shielded | Brass | 2 | 0.244 in | 0.224 in | 6.2 mm | 5.7 mm | ||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 304 | Metal | IP50 | Push-Pull | UL94 V-0 | Free Hanging (In-Line) | Brass, Bronze | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Silver | 7 A | Shielded | Brass | 4 | 2.2 mm, 3.2 mm | 0.087 in, 0.126 in | ||||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 302 | Metal | IP50 | Push-Pull | UL94 V-0 | Free Hanging (In-Line) | Brass, Bronze | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Silver | 10 A | Shielded | Brass | 2 | 4.2 mm | 0.165 in, 0.205 in | 5.2 mm | |||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 403 | Metal | IP50 | Push-Pull | Free Hanging (In-Line) | Bronze | Polytetrafluoroethylene (PTFE) | Receptacle, Female Sockets | Silver | 4 A | Shielded | Brass | 1 | 2.2 mm, 3.2 mm | 0.087 in, 0.126 in | |||||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 302 | Metal | IP50 | Push-Pull | UL94 V-0 | Free Hanging (In-Line) | Brass, Bronze | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Silver | 10 A | Shielded | Brass | 2 | 0.146 in | 0.126 in | 3.7 mm | 3.2 mm | ||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 403 | Metal | IP50 | Push-Pull | Free Hanging (In-Line) | Bronze | Polytetrafluoroethylene (PTFE) | Receptacle, Female Sockets | Silver | 4 A | Shielded | Brass | 1 | |||||||||||||||||||||||||||
Chrome | Gold | -55 °C | 250 °C | Brass, Chrome | Keyed | Backshell | 302 | Metal | IP50 | Push-Pull | UL94 V-0 | Free Hanging (In-Line) | Brass, Bronze | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Silver | 10 A | Shielded | Brass | 2 | 0.165 in | 0.126 in | 3.2 mm | 4.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.88 | |
| 10 | $ 27.72 | |||
| 25 | $ 25.13 | |||
| 50 | $ 23.38 | |||
| 100 | $ 21.80 | |||
| 250 | $ 19.93 | |||
| 500 | $ 18.68 | |||
Description
General part information
PCA.0S Series
2 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
