AZ2850-2C-24DE

Active

American Zettler

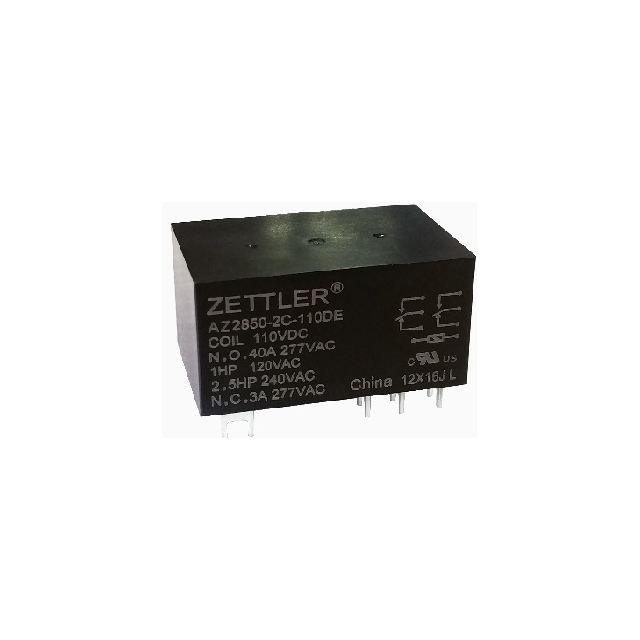

RELAY EV CHG SOLAR DPDT 3A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2850-2C-24DE

Active

American Zettler

RELAY EV CHG SOLAR DPDT 3A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ2850-2C-24DE	AZ2850-2C Series

Approval Agency	UL, VDE, cUR	UL, VDE, cUR
Coil Current	68.5 mA	16.7 - 166 mA
Coil Insulation	Class F	Class F
Coil Resistance	350 Ohms	1.125 - 830 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 240 VAC/DC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	3 A	3 - 40 A
Load - Max Switching	1200 W, 11080 VA	1200 - 11080 W
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	18 VDC	9 - 192 VAC
Must Release Voltage	2.4 VDC	1.2 - 48 VAC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	85 °C	65 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	25 ms	25 ms
Seal Rating	Sealed - Fully	Sealed - Fully
Switching Voltage	30 VDC, 600 VAC	30 - 600 VDC
Termination Style	PC Pin	PC Pin

AZ2850-2C Series

RELAY GEN PURPOSE DPDT 40A 220V

Part	Mounting Type	Release Time	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Coil Type	Load - Max Switching	Relay Type	Contact Material	Switching Voltage	Approval Agency	Must Release Voltage	Termination Style	Operate Time	Contact Form	Must Operate Voltage	Coil Voltage	Coil Insulation	Contact Rating (Current)	Seal Rating
American Zettler AZ2850-2C-220A5	Through Hole	25 ms	18.2 mA	65 °C	-40 °C	3.8 kOhms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Cadmium Oxide (AgCdO)	30 VDC, 600 VAC	cUR, UL, VDE	44 VAC	PC Pin	25 ms	DPDT (2 Form C)	176 VAC	220 VAC/DC	Class F	40 A
American Zettler AZ2850-2C-48DEF	Through Hole	25 ms	34.5 mA	85 °C	-40 °C	1.39 kOhms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Cadmium Oxide (AgCdO)	30 VDC, 600 VAC	cUR, UL, VDE	4.8 VDC	PC Pin	25 ms	DPDT (2 Form C)	36 VDC	48 VDC	Class F	40 A	Sealed - Fully
American Zettler AZ2850-2C-24DE	Through Hole	25 ms	68.5 mA	85 °C	-40 °C	350 Ohms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Cadmium Oxide (AgCdO)	30 VDC, 600 VAC	cUR, UL, VDE	2.4 VDC	PC Pin	25 ms	DPDT (2 Form C)	18 VDC	24 VDC	Class F	3 A	Sealed - Fully
American Zettler AZ2850-2C-12DE	Through Hole	25 ms	140 mA	85 °C	-40 °C	86 Ohms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Cadmium Oxide (AgCdO)	30 VDC, 600 VAC	cUR, UL, VDE	1.2 VDC	PC Pin	25 ms	DPDT (2 Form C)	9 VDC	12 VDC	Class F	3 A	Sealed - Fully
American Zettler AZ2850-2C-24A	Through Hole	25 ms	166 mA	65 °C	-40 °C	35.7 Ohms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Cadmium Oxide (AgCdO)	30 VDC, 600 VAC	cUR, UL, VDE	4.8 VAC	PC Pin	25 ms	DPDT (2 Form C)	19.2 VAC	24 VAC	Class F	40 A
American Zettler AZ2850-2C-120A5E	Through Hole	25 ms	33.3 mA	65 °C	-40 °C	1.125 kOhms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Cadmium Oxide (AgCdO)	30 VDC, 600 VAC	cUR, UL, VDE	24 VAC	PC Pin	25 ms	DPDT (2 Form C)	96 VAC	120 VAC	Class F	40 A	Sealed - Fully
American Zettler AZ2850-2C-120A6	Through Hole	25 ms	33.3 mA	65 °C	-40 °C	830 Ohms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Cadmium Oxide (AgCdO)	30 VDC, 600 VAC	cUR, UL, VDE	24 VAC	PC Pin	25 ms	DPDT (2 Form C)	96 VAC	120 VAC	Class F	40 A
American Zettler AZ2850-2CE-24A	Through Hole	25 ms	166 mA	65 °C	-40 °C	35.7 Ohms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Tin Oxide (AgSnO)	30 VDC, 600 VAC	cUR, UL, VDE	4.8 VAC	PC Pin	25 ms	DPDT (2 Form C)	19.2 VAC	24 VAC	Class F	40 A
American Zettler AZ2850-2C-240A5	Through Hole	25 ms	16.7 mA	65 °C	-40 °C	4.5 kOhms	Non Latching	1200 W, 11080 VA	General Purpose	Silver Cadmium Oxide (AgCdO)	30 VDC, 600 VAC	cUR, UL, VDE	48 VAC	PC Pin	25 ms	DPDT (2 Form C)	192 VAC	240 VAC	Class F	40 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.20
		10	$ 7.68
		25	$ 6.83
		40	$ 6.49
		100	$ 6.15
		300	$ 6.01

Description

General part information

AZ2850-2C Series

General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
