FMDV1050
ActiveFairview Microwave

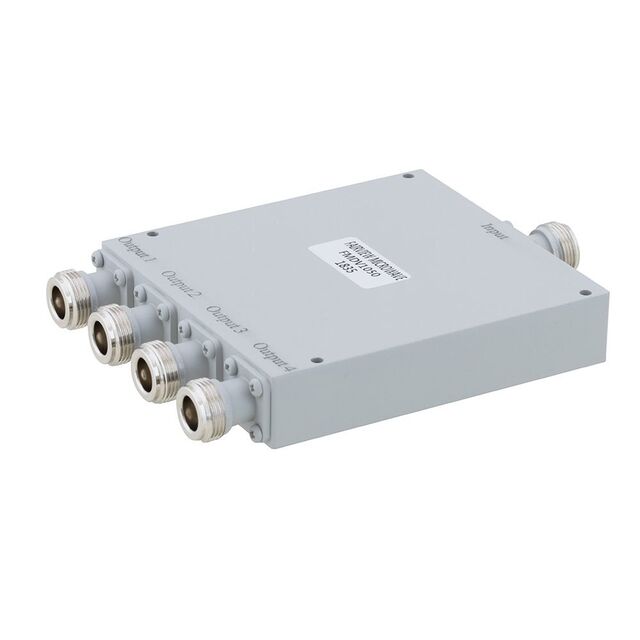

POWER DIVIDER 6 GHZ TYPE N
FMDV1050
ActiveFairview Microwave
POWER DIVIDER 6 GHZ TYPE N
Description
General part information
FMDV1050
RF Power Divider 375 MHz ~ 6 GHz Isolation (Min) 19dB, 4° Imbalance (Max), 1.5 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMDV1050 |
|---|---|
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 375 MHz |
| Imbalance (Max) | 4 ° |
| Insertion Loss | 2 dB |
| Isolation (Min) | 19 dB |
| Package / Case | Module |
| Size / Dimension Height | 0.807 in |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Width | 3.622 in |
| VSWR (Max) | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
