2-967677-1

Active

TE Connectivity AMP Connectors

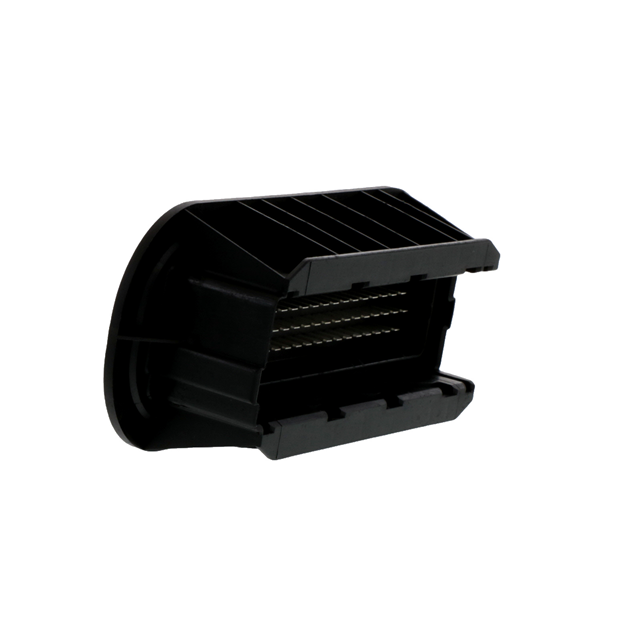

CONN HEADER VERT 55POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 55POS

Technical Specifications

Parameters and characteristics for this part

Specification	2-967677-1

Connector Type	Header
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post [x]	6 mm
Contact Length - Post [x]	0.236 "
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Lever Lock
Features	Board Guide, Mounting Flange, Sealed
Insulation Color	Black
Insulation Height	1.394 in
Insulation Height	35.4 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	55 positions
Number of Positions Loaded	All
Number of Rows	3
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1152	$ 21.86

CONN HEADER VERT 55POS

Part	Number of Positions	Number of Positions Loaded	Termination	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Shrouding	Connector Type	Contact Type	Insulation Color	Style	Insulation Height	Insulation Height	Mounting Type	Contact Shape	Features	Contact Material
TE Connectivity AMP Connectors 2-967677-1	55 positions	All	Solder	Lever Lock	7 mm	0.276 in	Polybutylene Terephthalate (PBT), Glass Filled	6 mm	0.236 "	3	Shrouded - 4 Wall	Header	Male Pin	Black	Board to Cable/Wire	1.394 in	35.4 mm	Through Hole	Rectangular	Board Guide, Mounting Flange, Sealed	Copper Alloy

General part information

Connector Header Through Hole 55 position
