1-794407-0
ActiveTE Connectivity AMP Connectors

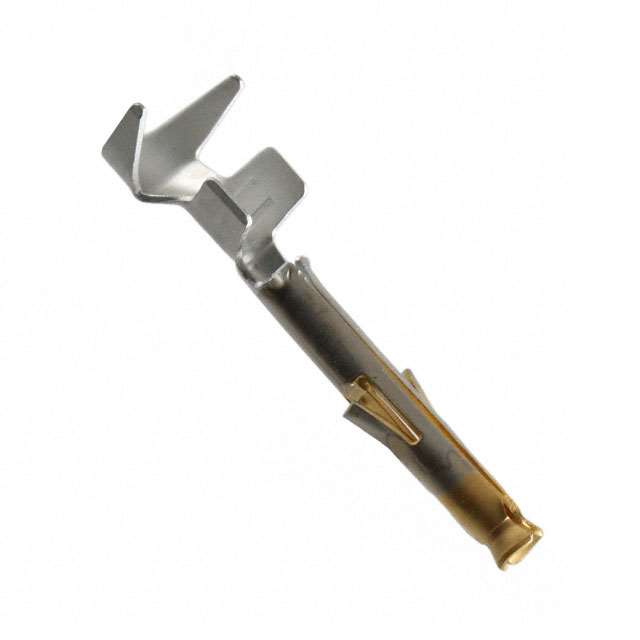

CONN SOCKET 16-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-794407-0
ActiveTE Connectivity AMP Connectors
CONN SOCKET 16-20AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-794407-0 | 794407 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
794407 Series
CONN SOCKET 16-20AWG CRIMP GOLD
| Part | Contact Termination | Contact Finish | Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794407-0 | Crimp | Gold | Stamped | 16 AWG | 20 AWG | 0.76 Ám | 30 Áin | Socket |
TE Connectivity AMP Connectors 794407-1 | Crimp | Tin | Stamped | 16 AWG | 20 AWG | Socket | ||
TE Connectivity AMP Connectors 794407-4 | Crimp | Tin | Stamped | 16 AWG | 20 AWG | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.52 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.31 | |||
| Tape & Reel (TR) | 4500 | $ 0.30 | ||
| 9000 | $ 0.27 | |||
| 13500 | $ 0.25 | |||
Description
General part information
794407 Series
Socket Contact Gold 16-20 AWG Crimp Stamped
Documents
Technical documentation and resources
