0002061101-03-N2-D

Active

Molex

3" PRE-CRIMP A2101 BROWN

Search across all available documentation for this part.

Active

Molex

3" PRE-CRIMP A2101 BROWN

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Rows	Length	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Number of Conductors	Contact End	Color	Contact Finish	Length	Length [x]
Molex 0002061101-12-R2	1	304.8 mm	12 in	0.51 µm	20 µin	22 AWG	1	Socket to Cable (Round)	Red	Tin
Molex 0002061101-02-G0	1			0.51 µm	20 µin	20 AWG	1	Socket to Cable (Round)	Green	Tin
Molex 0002061101-06-S9-D	1	152.4 mm		0.51 µm	20 µin	18 AWG	1	Socket to Socket	Slate	Tin	6 in
Molex 0002061101-10-V9	1	254 mm	10 in	0.51 µm	20 µin	18 AWG	1	Socket to Cable (Round)	Violet	Tin
Molex 0002061101-04-B2-D	1		4 "	0.51 µm	20 µin	22 AWG	1	Socket to Socket	Black	Tin		101.6 mm
Molex 0002061101-12-L0-D	1	304.8 mm	12 in	0.51 µm	20 µin	20 AWG	1	Socket to Socket	Blue	Tin
Molex 0002061101-11-W9-D	1		11 in	0.51 µm	20 µin	18 AWG	1	Socket to Socket	White	Tin		279.4 mm
Molex 0002061101-12-A2	1	304.8 mm	12 in	0.51 µm	20 µin	22 AWG	1	Socket to Cable (Round)		Tin
Molex 0002061101-02-A9	1			0.51 µm	20 µin	18 AWG	1	Socket to Cable (Round)		Tin
Molex 0002061101-03-W9	1	76.2 mm	3 in	0.51 µm	20 µin	18 AWG	1	Socket to Cable (Round)	White	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

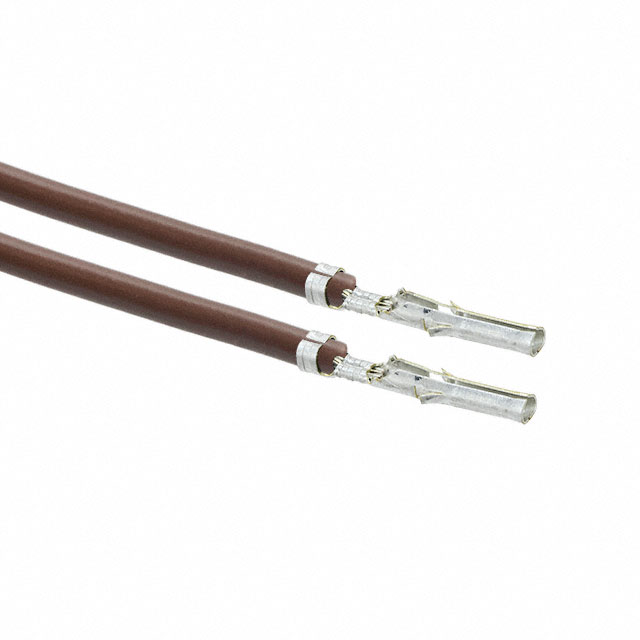

Brown 22 AWG Jumper Lead Socket to Socket Tin 3.00" (76.20mm)
