BDLH6SR000000S
ActiveNextGen Components

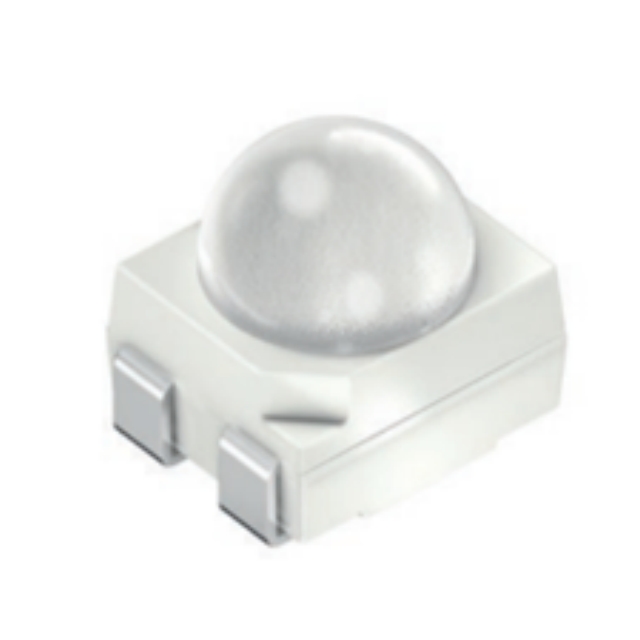

SUPER RED TOP LED PLCC-4 60 DEG.
BDLH6SR000000S
ActiveNextGen Components
SUPER RED TOP LED PLCC-4 60 DEG.
Description
General part information
BDLH6SR000000S
Red 628nm LED Indication - Discrete 1.90V 4-PLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | BDLH6SR000000S |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 50 mA |
| Grade | Automotive |
| Height (Max) | 1.75 mm |
| Lens Color | Colorless |
| Lens Diameter | 2.5 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 2880 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Package Name | 4-PLCC |
| Size / Dimension Length | 3.5 mm |
| Size / Dimension Width | 2.8 mm |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 628 nm |
| Wavelength - Peak | 645 nm |
