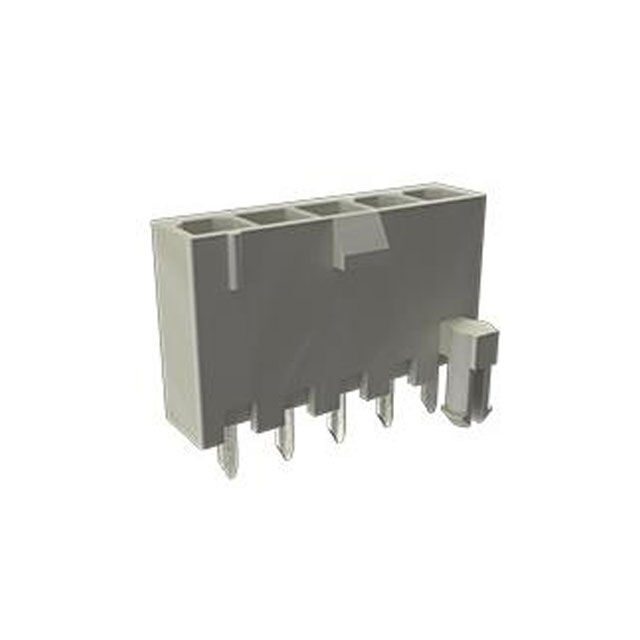

10137785-051211LF

Active

Amphenol ICC (FCI)

CONN PWR4.2 HCC VT

Deep-Dive with AI

Documentsminitek pwr productpresentation Other Related Document 10131319-1841200LF +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10137785-051211LF

Connector Type	Header
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Lock, Glow Wire Compliant
Insulation Color	Black
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Voltage Rating	600 V

10137785 Series

Part	Shrouding	Material Flammability Rating	Number of Positions	Contact Finish - Mating	Fastening Type	Style	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Voltage Rating	Contact Type	Insulation Color	Features	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Contact Material	Contact Shape	Number of Rows	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Current Rating (Amps)
Amphenol ICC (FCI) 10137785-042212LF	Shrouded - 4 Wall	UL94 V-0	4	Gold	Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Black	Glow Wire Compliant	Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole	Flash	Copper Alloy	Rectangular	1	Polyamide (PA66) Nylon 6/6
Amphenol ICC (FCI) 10137785-041121LF	Shrouded - 4 Wall	UL94 V-0	4		Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Natural		Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole	Flash	Copper Alloy	Rectangular	1	Polyamide (PA66) Nylon 6/6
Amphenol ICC (FCI) 10137785-041232LF	Shrouded - 4 Wall	UL94 V-0	4		Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Black	Glow Wire Compliant	Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole		Copper Alloy	Rectangular	1	Liquid Crystal Polymer (LCP)
Amphenol ICC (FCI) 10137785-031131LF	Shrouded - 4 Wall	UL94 V-0			Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Natural	Board Lock Glow Wire Compliant	Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole		Copper Alloy	Rectangular	1	Liquid Crystal Polymer (LCP)
Amphenol ICC (FCI) 10137785-052222LF	Shrouded - 4 Wall	UL94 V-0		Gold	Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Black		Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole	Flash	Copper Alloy	Rectangular	1	Polyamide (PA66) Nylon 6/6
Amphenol ICC (FCI) 10137785-044242CLF	Shrouded - 4 Wall	UL94 V-0	4	Gold	Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in		Male Pin	Black	Board Guide	Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole		Copper Alloy	Rectangular	1	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Tin	Varies by Wire Gauge
Amphenol ICC (FCI) 10137785-032222LF	Shrouded - 4 Wall	UL94 V-0		Gold	Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Black		Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole	Flash	Copper Alloy	Rectangular	1	Polyamide (PA66) Nylon 6/6
Amphenol ICC (FCI) 10137785-032112LF	Shrouded - 4 Wall	UL94 V-0		Gold	Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Natural	Glow Wire Compliant	Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole	Flash	Copper Alloy	Rectangular	1	Polyamide (PA66) Nylon 6/6
Amphenol ICC (FCI) 10137785-051232LF	Shrouded - 4 Wall	UL94 V-0			Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Black	Glow Wire Compliant	Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole		Copper Alloy	Rectangular	1	Liquid Crystal Polymer (LCP)
Amphenol ICC (FCI) 10137785-051211LF	Shrouded - 4 Wall	UL94 V-0			Locking Ramp	Board to Cable/Wire	4.2 mm	0.165 in	All	3.5 mm	0.138 in	600 V	Male Pin	Black	Board Lock Glow Wire Compliant	Header	12.8 mm	0.504 in	-40 °C	105 ░C	Through Hole		Copper Alloy	Rectangular	1	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10137785 Series

Connector Header Through Hole 5 position 0.165" (4.20mm)
