Description
General part information

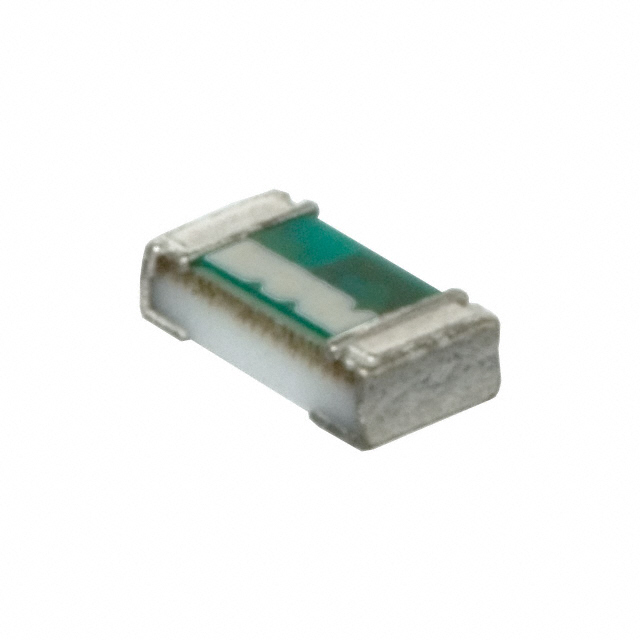

TFL0816-18N
18 nH Unshielded Thin Film Inductor 250 mA 1.5Ohm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TFL0816-18N |
|---|---|
| Current Rating | 0.25 A |
| DC Resistance (DCR) (Max) | 1.5 Ohm |
| Frequency - Self Resonant | 2 GHz |
| Height - Seated (Max) | 0.022 in |
| Inductance | 18 nH |
| Inductance Frequency - Test | 200 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 (1608 Metric) |
| Q | 15 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 2 % |
| Type | Thin Film |
