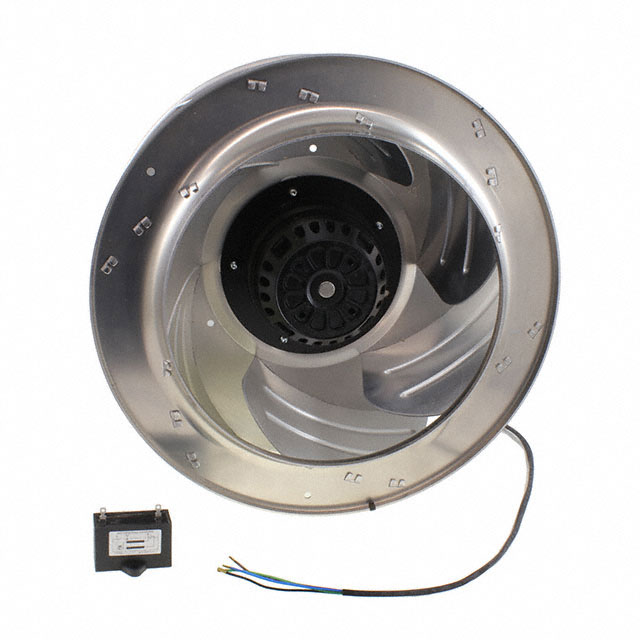

UF318AAA23-H1C4A-L32

Active

Mechatronics Fan Group

FAN IMP MTRZ 318X154.4MM 230VAC

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN IMP MTRZ 318X154.4MM 230VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF318AAA23-H1C4A-L32	UF318 Series

Air Flow	32.62 mł/min	32.62 mł/min
Air Flow	1165 CFM	1165 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.7 A	0.7 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Steel	Steel
Material - Frame	Steel	Steel
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	160 W	160 W
RPM	1580 RPM	1580 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	318 mm	318 mm
Static Pressure	1.6 in H2O	1.6 in H2O
Static Pressure	398.6 Pa	398.6 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	230 VAC	230 VAC
Width [y]	154.4 mm	154.4 mm

IMPELLER 318X154MM 230VAC

Part	Width [y]	Material - Frame	Termination	Current Rating (Amps)	Voltage - Rated	Air Flow	Air Flow	Fan Type	Material - Blade	Static Pressure	Static Pressure	RPM	Approval Agency	Power (Watts)	Size / Dimension [diameter]	Size / Dimension	Features	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Mechatronics Fan Group UF318AAA23-H1C4A	154.4 mm	Steel	4 Wire Leads	0.7 A	230 VAC	32.62 mł/min	1165 CFM	Motorized Impellers	Steel	1.6 in H2O	398.6 Pa	1580 RPM	CE, cUL, TUV, UL	160 W	318 mm	Round	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Ball	-20 °C	70 °C	-20 C	70 °C
Mechatronics Fan Group UF318AAA23-H1C4A-L32	154.4 mm	Steel	4 Wire Leads	0.7 A	230 VAC	32.62 mł/min	1165 CFM	Motorized Impellers	Steel	1.6 in H2O	398.6 Pa	1580 RPM	CE, cUL, TUV, UL	160 W	318 mm	Round	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Ball	-20 °C	70 °C	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 206.47

General part information

Fan Motorized Impellers 230VAC Round - 318mm Dia Ball 1165.0 CFM (32.62m³/min) 4 Wire Leads
