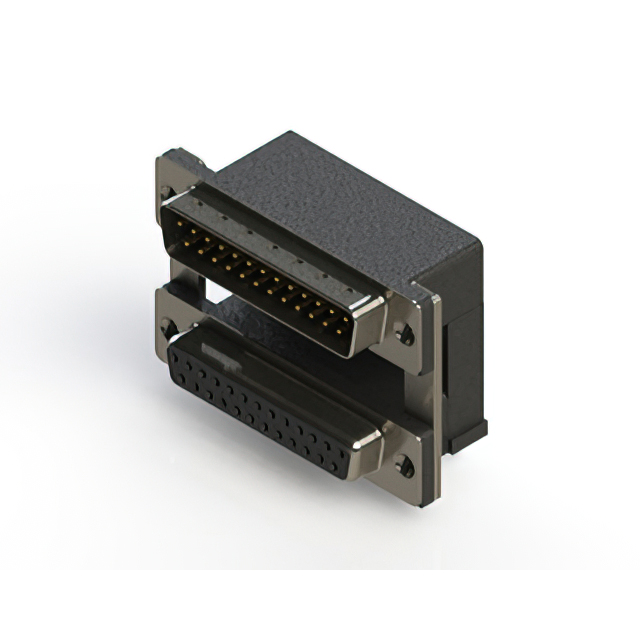

663-025-664-008

Active

EDAC Inc.

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	663-025-664-008

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder

663-025 Series

...

Part	Mounting Type	Contact Material	Contact Finish	Shell Size, Connector Layout	Contact Finish Thickness	Current Rating (Amps)	Termination	Number of Rows	Material Flammability Rating	Features	Number of Positions	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Dielectric Material	Color	Connector Style	Backset Spacing	Backset Spacing	Connector Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 663-025-264-034	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)	Flash	3 A	Solder	2	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Housing/Shell (Unthreaded)
EDAC Inc. 663-025-664-04C	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)		3 A	Solder	2	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Housing/Shell (M3)	0.76 Ám	30 Áin
EDAC Inc. 663-025-664-008	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)		3 A	Solder	2	UL94 V-0	Grounding Indents Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Housing/Shell (4-40)	0.76 Ám	30 Áin
EDAC Inc. 663-025-264-005	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)	Flash	3 A	Solder	2	UL94 V-0	Grounding Indents Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Housing/Shell (4-40)
EDAC Inc. 663-025-664-00C	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)		3 A	Solder	2	UL94 V-0	Grounding Indents Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Housing/Shell (M3)	0.76 Ám	30 Áin
EDAC Inc. 663-025-364-03A	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)		3 A	Solder	2	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Housing/Shell (M3)	0.38 µm	15 µin
EDAC Inc. 663-025-664-056	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)		3 A	Solder	2	UL94 V-0	Grounding Indents Mounting Brackets Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin
EDAC Inc. 663-025-364-043	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)		3 A	Solder	2	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	0.38 µm	15 µin
EDAC Inc. 663-025-364-051	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)		3 A	Solder	2	UL94 V-0	Grounding Indents Mounting Brackets Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Housing/Shell (M3)	0.38 µm	15 µin
EDAC Inc. 663-025-364-001	Through Hole Right Angle	Brass Phosphor Bronze	Gold	3 (DB B)		3 A	Solder	2	UL94 V-0	Grounding Indents Shielded	25	Nickel Plated Steel	85 °C	-55 °C	Signal	Polyester Thermoplastic	Black	D-Sub - Stacked	8.08 mm	0.318 "	Plug Male Pins Receptacle Female Sockets	Housing/Shell (M3)	0.38 µm	15 µin
