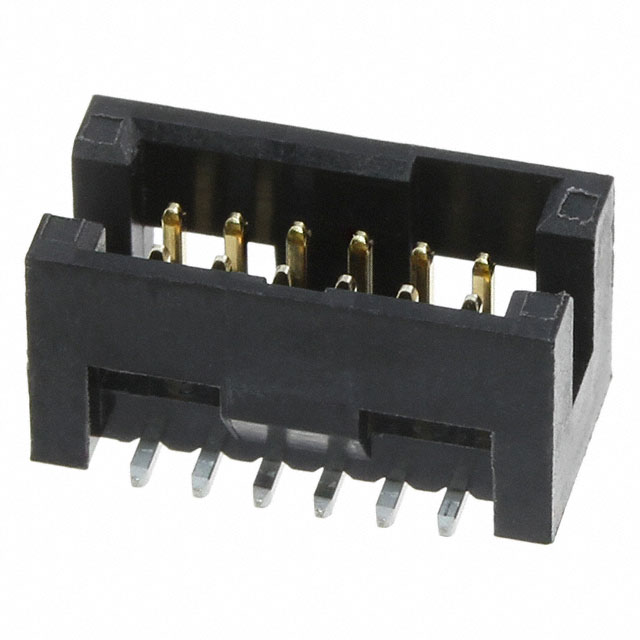

20021221-00012C4LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD 12POS 1.27MM

Deep-Dive with AI

Documentsminitek127 productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021221-00012C4LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	125 VAC

20021221 Series

Part	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Material	Contact Type	Insulation Color	Termination	Voltage Rating	Connector Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Material	Number of Positions Loaded	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Number of Rows	Current Rating (Amps)	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 20021221-00050C8LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold GXT™	Pick and Place	30 Áin	0.76 Ám	Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	50	UL94 V-0	2	1 A	Square	Tin
Amphenol ICC (FCI) 20021221-00014T4LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold		10 çin	0.25 çm	Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	14	UL94 V-0	2	1 A	Square	Tin
Amphenol ICC (FCI) 20021221-00008C6LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold GXT™	Pick and Place	15 µin	0.38 µm	Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	6	UL94 V-0	2	1 A	Square	Tin
Amphenol ICC (FCI) 20021221-00026T1LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold				Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	26	UL94 V-0	2	1 A	Square	Tin	Flash
Amphenol ICC (FCI) 20021221-00060C8LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold GXT™	Pick and Place	30 Áin	0.76 Ám	Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	60	UL94 V-0	2	1 A	Square	Tin
Amphenol ICC (FCI) 20021221-00012T1LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold				Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	12	UL94 V-0	2	1 A	Square	Tin	Flash
Amphenol ICC (FCI) 20021221-00026C8LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold GXT™	Pick and Place	30 Áin	0.76 Ám	Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	26	UL94 V-0	2	1 A	Square	Tin
Amphenol ICC (FCI) 20021221-00020T1LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold				Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	20	UL94 V-0	2	1 A	Square	Tin	Flash
Amphenol ICC (FCI) 20021221-00012C4LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	Pick and Place	10 çin	0.25 çm	Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	12	UL94 V-0	2	1 A	Square	Tin
Amphenol ICC (FCI) 20021221-00010T4LF	Shrouded - 4 Wall	1.27 µm	50 µin	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold		10 çin	0.25 çm	Surface Mount	Thermoplastic	Male Pin	Black	Solder	125 VAC	Header	3.05 mm	0.12 in	Push-Pull	Copper Alloy	All	5.6 mm	0.22 in	-55 °C	125 °C	10	UL94 V-0	2	1 A	Square	Tin
