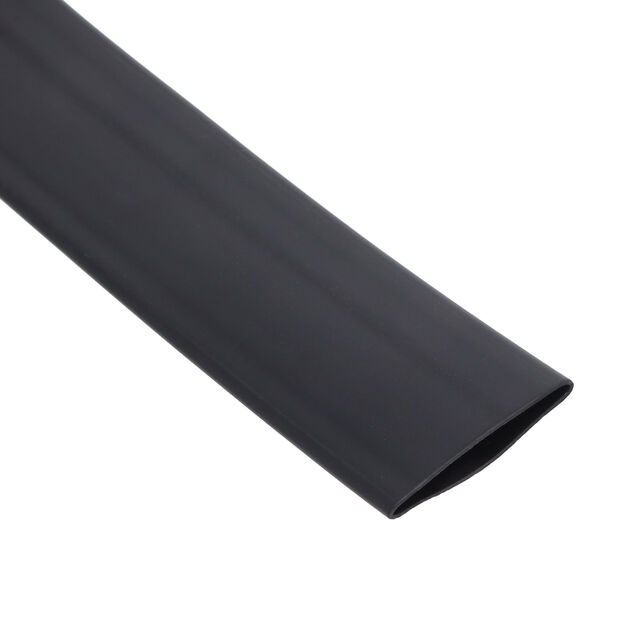

W3B2S 24/8 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 0.94" BLACK FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W3B2S 24/8 BLACK SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 0.94" BLACK FOOT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 5.62
		5	$ 5.40
		10	$ 4.16
		25	$ 3.82
		50	$ 3.60
		100	$ 3.37

Description

General part information

W3B2S Series

Heat Shrink Tubing, Flexible 0.940" (23.88mm) 3 to 1 Black Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W3B2S 24/8 BLACK SPL	W3B2S Series

Color	Black	Black
Features	Adhesive Lined, Flame Retardant	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered	-	2.01 - 13 mm
Inner Diameter - Recovered	-	0.079 - 0.512 in
Inner Diameter - Recovered [diameter]	8.13 mm	1.02 - 8.13 mm
Inner Diameter - Recovered [diameter]	0.32 "	0.04 - 0.32 in
Inner Diameter - Supplied	-	40.01 mm
Inner Diameter - Supplied [diameter]	23.88 mm	1.575 - 23.88 mm
Inner Diameter - Supplied [diameter]	0.94 "	0.125 - 0.94 in
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.1 in	0.037 - 0.1 in
Recovered Wall Thickness	2.54 mm	0.043 - 2.54 mm
Recovered Wall Thickness	-	1.09 mm
Shrink Temperature	110 °C	110 °C
Shrinkage Ratio [Max]	3	3
Shrinkage Ratio [Min]	1	1
Spool Size	91.4 m	91.4 - 1066.8 m
Spool Size	300 ft	300 - 3500 '
Type	Tubing, Flexible	Tubing, Flexible

W3B2S Series

SUMITUBE W3B2S-HEAT-SHRINKA FEET

Part	Inner Diameter - Recovered	Inner Diameter - Recovered	Color	Material	Features	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Spool Size	Spool Size	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Shrink Temperature	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/8 BLACK SPL	3 mm	0.118 in	Black	Polyolefin (PO)	Adhesive Lined, Flame Retardant	1	3	0.051 in	1.3 mm	Tubing, Flexible	500 '	152.4 m	-55 °C	125 °C	0.374 in	9.5 mm	Enter Number of Feet in Order Quantity	110 °C
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/16 BLACK SPL			Black	Polyolefin (PO)	Adhesive Lined, Flame Retardant	1	3		0.043 in	Tubing, Flexible	2000 '	609.6 m	-55 °C	125 °C	0.189 in	4.8 mm	Enter Number of Feet in Order Quantity	110 °C	1.09 mm
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/2 BLACK SPL			Black	Polyolefin (PO)	Adhesive Lined, Flame Retardant	1	3	0.055 in	1.4 mm	Tubing, Flexible	500 '	152.4 m	-55 °C	125 °C	0.5 in	12.7 mm	Enter Number of Feet in Order Quantity	110 °C		3.99 mm	0.157 in
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/4 BLACK SPL	5.99 mm	0.236 in	Black	Polyolefin (PO)	Adhesive Lined, Flame Retardant	1	3	0.071 "	1.8 mm	Tubing, Flexible	400 ft	121.9 m	-55 °C	125 °C	0.748 in	19 mm	Enter Number of Feet in Order Quantity	110 °C
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/4 BLACK SPL	2.01 mm	0.079 in	Black	Polyolefin (PO)	Adhesive Lined, Flame Retardant	1	3	0.047 "	1.19 mm	Tubing, Flexible	1000 ft	304.8 m	-55 °C	125 °C	0.252 "	6.4 mm	Enter Number of Feet in Order Quantity	110 °C
Sumitomo Electric Interconnect Products, Inc. W3B2S 40/13 BLACK SPL	13 mm	0.512 in	Black	Polyolefin (PO)	Adhesive Lined, Flame Retardant	1	3	0.098 in	2.49 mm	Tubing, Flexible	400 ft	121.9 m	-55 °C	125 °C		1.575 "	Enter Number of Feet in Order Quantity	110 °C				40.01 mm
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/8 BLACK SPL			Black	Polyolefin (PO)	Adhesive Lined, Flame Retardant	1	3	0.037 in	0.94 mm	Tubing, Flexible	3500 ft	1066.8 m	-55 °C	125 °C	0.125 "	3.18 mm	Enter Number of Feet in Order Quantity	110 °C		1.02 mm	0.04 in
Sumitomo Electric Interconnect Products, Inc. W3B2S 24/8 BLACK SPL			Black	Polyolefin (PO)	Adhesive Lined, Flame Retardant	1	3	0.1 in	2.54 mm	Tubing, Flexible	300 ft	91.4 m	-55 °C	125 °C	0.94 "	23.88 mm	Enter Number of Feet in Order Quantity	110 °C		8.13 mm	0.32 "
