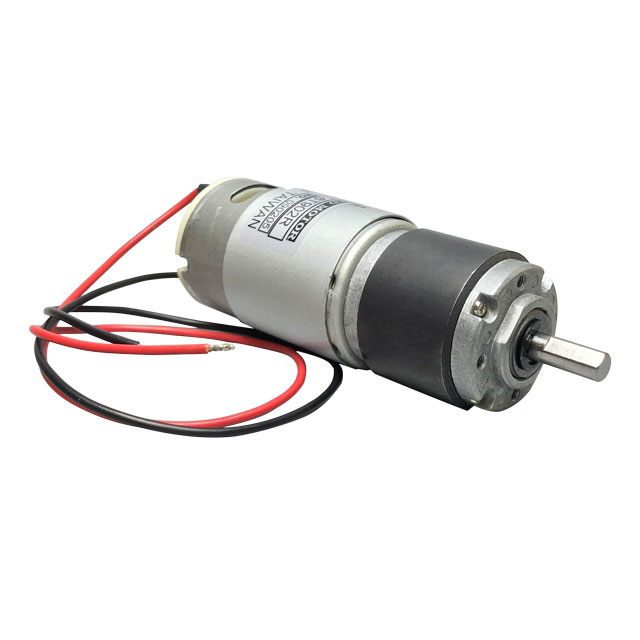

MOT-IG32PGM-24VDC

Active

ISL Products International

GEAR MOTOR BRUSH 24V W/WIRES

Search across all available documentation for this part.

Active

ISL Products International

GEAR MOTOR BRUSH 24V W/WIRES

Technical Specifications

Parameters and characteristics for this part

Specification	MOT-IG32PGM-24VDC

Diameter - Shaft [diameter]	6 mm
Diameter - Shaft [diameter]	0.236 in
Length - Shaft and Bearing	92 mm
Length - Shaft and Bearing [x]	3.622 in
Motor Type	Brushed
Mounting Hole Spacing	18 mm
Mounting Hole Spacing	0.709 in
Power - Rated	15 W
RPM	96 RPM
Termination Style	Wire Leads
Torque - Max Momentary (oz-in / mNm)	555 oz-in
Torque - Max Momentary (oz-in / mNm)	3922 mNm
Torque - Rated (oz-in / mNm)	945 mNm
Torque - Rated (oz-in / mNm)	128.5 oz-in
Type	DC Motor
Voltage - Rated	24 VDC

GEAR MOTOR BRUSH 24V W/WIRES

Part	Motor Type	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Power - Rated	RPM	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing	Mounting Hole Spacing	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Termination Style	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Type	Voltage - Rated
ISL Products International MOT-IG32PGM-24VDC	Brushed	92 mm	3.622 in	15 W	96 RPM	6 mm	0.236 in	18 mm	0.709 in	555 oz-in	3922 mNm	Wire Leads	945 mNm	128.5 oz-in	DC Motor	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Gearmotor 96 RPM 15W 24VDC
