1081-8-2

Active

Pomona Electronics

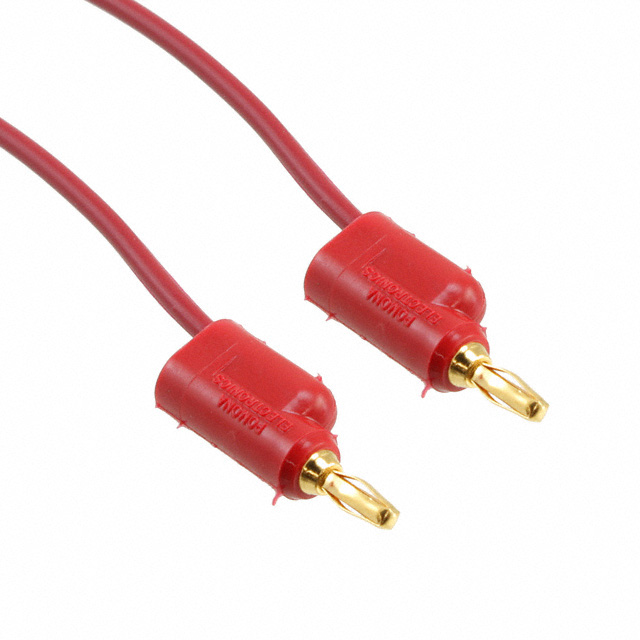

TEST LEAD BANANA TO BANANA 8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1081-8-2

Active

Pomona Electronics

TEST LEAD BANANA TO BANANA 8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1081-8-2

1st Connector	Miniature Banana Plug, Single, Stackable
2nd Connector	Miniature Banana Plug, Single, Stackable
Cable Length	8 "
Cable Length	203.2 mm
Configuration	Banana to Banana
Contents	Red
Contents [custom]	1
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking
Type	Patch Cord
Voltage - Rated	3 kV
Voltage - Rated	3000 V
Wire Gauge	20 AWG

1081 Series

Part	Voltage - Rated	Voltage - Rated	Contents	Material - Insulation	2nd Connector	Stacking Method	1st Connector	Cable Length	Cable Length	Type	Wire Gauge	Configuration	Current Rating (Amps)	Contents [custom]	Cable Length [x]	Cable Length [x]
Pomona Electronics 1081-24-0	3 kV	3000 V	1 Lead Black	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	24 "	609.6 mm	Patch Cord	20 AWG	Banana to Banana	5 A
Pomona Electronics 1081-8-2	3 kV	3000 V	Red	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	8 "	203.2 mm	Patch Cord	20 AWG	Banana to Banana	5 A	1
Pomona Electronics 1081-18-0	3 kV	3000 V	1 Lead Black	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	18 in	457.2 mm	Patch Cord	20 AWG	Banana to Banana	5 A
Pomona Electronics 1081-48-0	3 kV	3000 V	1 Lead Black	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	48 in	1219.2 mm	Patch Cord	20 AWG	Banana to Banana	5 A
Pomona Electronics 1081-48-2	3 kV	3000 V	Red	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	48 in	1219.2 mm	Patch Cord	20 AWG	Banana to Banana	5 A	1
Pomona Electronics 1081-60-2	3 kV	3000 V	Red	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	5 ft	1524 mm	Patch Cord	20 AWG	Banana to Banana	5 A	1
Pomona Electronics 1081-4-0	3 kV	3000 V	1 Lead Black	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable			Patch Cord	20 AWG	Banana to Banana	5 A		4 in	101.6 mm
Pomona Electronics 1081-36-0	3 kV	3000 V	1 Lead Black	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	36 in	914.4 mm	Patch Cord	20 AWG	Banana to Banana	5 A
Pomona Electronics 1081-60-0	3 kV	3000 V	1 Lead Black	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	5 ft	1524 mm	Patch Cord	20 AWG	Banana to Banana	5 A
Pomona Electronics 1081-8-0	3 kV	3000 V	1 Lead Black	Poly-Vinyl Chloride (PVC)	Miniature Banana Plug Single Stackable	Front Stacking	Miniature Banana Plug Single Stackable	8 "	203.2 mm	Patch Cord	20 AWG	Banana to Banana	5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.19
		25	$ 10.19

Description

General part information

1081 Series

8.0" (203.20mm) Miniature Banana Plug, Single, Stackable To Miniature Banana Plug, Single, Stackable Patch Cord 3000VAC, DC (3kV)
