Description
General part information
OXETGLJANF-38.880000

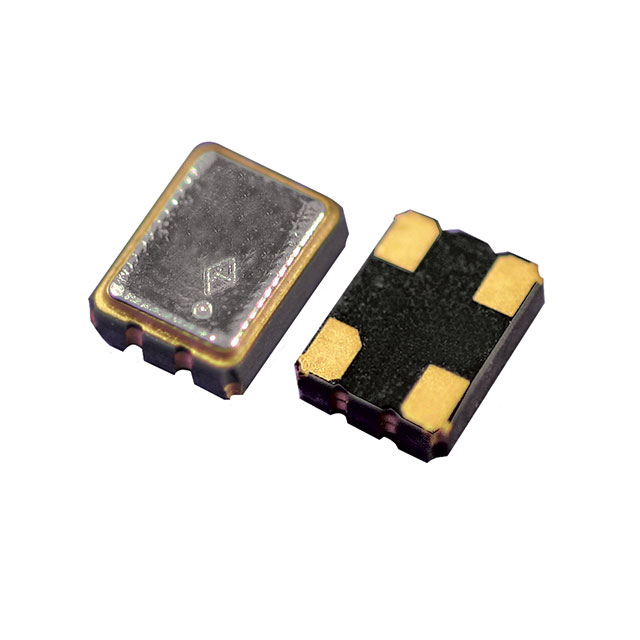

38.88 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | OXETGLJANF-38.880000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 10 mA |
| Frequency | 38.88 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.043 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
