SMA301SPG-UT GW

Active

American Opto Plus LED

ULTRA THIN 7SEG 0.3" GREEN 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

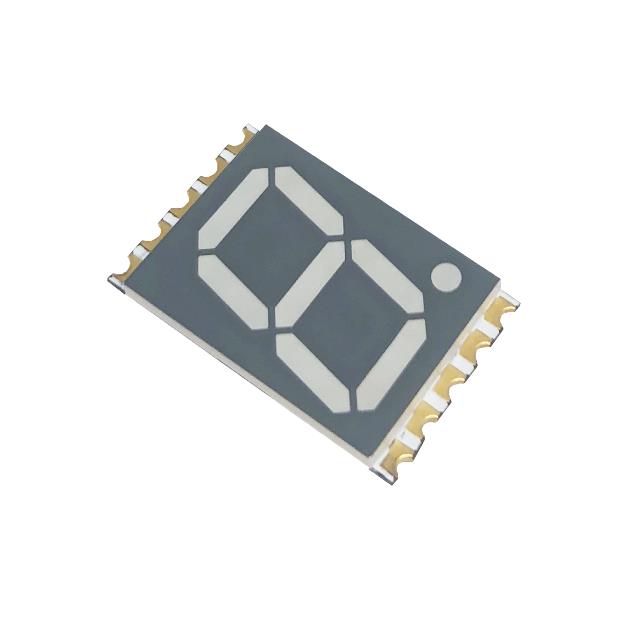

SMA301SPG-UT GW

Active

American Opto Plus LED

ULTRA THIN 7SEG 0.3" GREEN 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.37
		10	$ 2.53
		100	$ 2.11

Description

General part information

SMA301 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.8V 20mA 0.512" H x 0.299" W x 0.132" D (13.00mm x 7.60mm x 3.35mm) 10-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMA301SPG-UT GW	SMA301 Series

Color	Green	Green, Amber, Blue, Red, Yellow, Yellow-Green
Common Pin	Common Anode	Common Anode
Current - Test	20 mA	20 mA
Digit/Alpha Size	0.3 in	0.3 in
Digit/Alpha Size	7.62 mm	7.62 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	15 mcd	2 - 30 mcd
Number of Characters [custom]	1	1
Package / Case	10-SMD, No Lead	10-SMD, No Lead
Power Dissipation (Max) [Max]	120 mW	70 - 120 mW
Size / Dimension [x]	13 mm	10 - 13 mm
Size / Dimension [x]	0.512 in	0.394 - 0.512 in
Size / Dimension [y]	7.6 mm	7.3 - 7.6 mm
Size / Dimension [y]	0.299 in	0.287 - 0.299 in
Size / Dimension [z]	3.35 mm	3.35 - 4.3 mm
Size / Dimension [z]	0.132 "	0.132 - 0.169 "
Voltage - Forward (Vf) (Typ)	2.8 V	2 - 3.2 V
Wavelength - Peak	-	525 - 650 nm

SMA301 Series

ULTRA THIN 7SEG 0.3" GREEN 10SMD

Part	Color	Common Pin	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Package / Case	Millicandela Rating	Power Dissipation (Max) [Max]	Display Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Wavelength - Peak
American Opto Plus LED SMA301SPG-UT GW	Green	Common Anode	2.8 V	1	10-SMD, No Lead	15 mcd	120 mW	7-Segment	3.35 mm	7.6 mm	0.132 "	13 mm	0.512 in	0.299 in	0.3 in	7.62 mm	20 mA
American Opto Plus LED SMA301LA G/W	Amber	Common Anode	2 V	1	10-SMD, No Lead	8 mcd	70 mW	7-Segment	4.3 mm	7.3 mm	0.169 in	10 mm	0.394 "	0.287 in	0.3 in	7.62 mm	20 mA
American Opto Plus LED SMA301LB G/W	Blue	Common Anode	3.2 V	1	10-SMD, No Lead	10 mcd	120 mW	7-Segment	4.3 mm	7.3 mm	0.169 in	10 mm	0.394 "	0.287 in	0.3 in	7.62 mm	20 mA
American Opto Plus LED SMA301PG G/W	Green	Common Anode	3.2 V	1	10-SMD, No Lead	30 mcd	120 mW	7-Segment	4.3 mm	7.3 mm	0.169 in	10 mm	0.394 "	0.287 in	0.3 in	7.62 mm	20 mA	525 nm
American Opto Plus LED SMA301LR G/W	Red	Common Anode	2 V	1	10-SMD, No Lead	2 mcd	75 mw	7-Segment	4.3 mm	7.3 mm	0.169 in	10 mm	0.394 "	0.287 in	0.3 in	7.62 mm	20 mA	650 nm
American Opto Plus LED SMA301LE G/W	Red	Common Anode	2 V	1	10-SMD, No Lead	8 mcd	70 mW	7-Segment	4.3 mm	7.3 mm	0.169 in	10 mm	0.394 "	0.287 in	0.3 in	7.62 mm	20 mA	632 nm
American Opto Plus LED SMA301LY G/W	Yellow	Common Anode	2 V	1	10-SMD, No Lead	8 mcd	70 mW	7-Segment	4.3 mm	7.3 mm	0.169 in	10 mm	0.394 "	0.287 in	0.3 in	7.62 mm	20 mA	593 nm
American Opto Plus LED SMA301YG G/W	Yellow-Green	Common Anode	2.1 V	1	10-SMD, No Lead	8 mcd	70 mW	7-Segment	4.3 mm	7.3 mm	0.169 in	10 mm	0.394 "	0.287 in	0.3 in	7.62 mm	20 mA	573 nm
