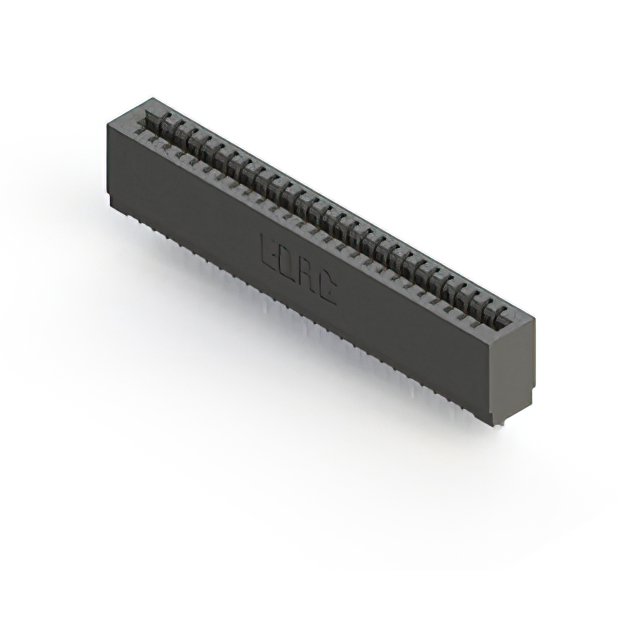

725-026-541-101

Active

EDAC Inc.

CONN EDGE SINGLE FML 26POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

725-026-541-101

Active

EDAC Inc.

CONN EDGE SINGLE FML 26POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	725-026-541-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	26
Number of Positions/Bay/Row [custom]	26
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap, Press-Fit
Termination Rows	1

725-026 Series

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Mounting Type	Termination	Card Type	Read Out	Termination Rows	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Gender	Contact Finish	Contact Material	Contact Type
EDAC Inc. 725-026-520-201	2	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit	Non Specified - Dual Edge	Dual	2	13	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever
EDAC Inc. 725-026-522-101	1	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit	Non Specified - Single Edge	Single	1	26	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever
EDAC Inc. 725-026-560-201	2	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit	Non Specified - Dual Edge	Dual	2	13	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever Make Before Break
EDAC Inc. 725-026-541-101	1	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit Wire Wrap	Non Specified - Single Edge	Single	1	26	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever
EDAC Inc. 725-026-525-101	1	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit	Non Specified - Single Edge	Single	1	26	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever
EDAC Inc. 725-026-545-101	1	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit Wire Wrap	Non Specified - Single Edge	Single	1	26	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever
EDAC Inc. 725-026-545-201	2	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit Wire Wrap	Non Specified - Dual Edge	Dual	2	13	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever
EDAC Inc. 725-026-540-101	1	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit Wire Wrap	Non Specified - Single Edge	Single	1	26	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever
EDAC Inc. 725-026-540-201	2	0.76 Ám	30 Áin	-40 °C	105 ░C	Polyester Thermoplastic	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Through Hole	Press-Fit Wire Wrap	Non Specified - Dual Edge	Dual	2	13	2.54 mm	0.1 in	Female	Gold	Copper Alloy	Cantilever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.12

Description

General part information

725-026 Series

26 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
