ATM0500D27-CT

Active

AZ Displays

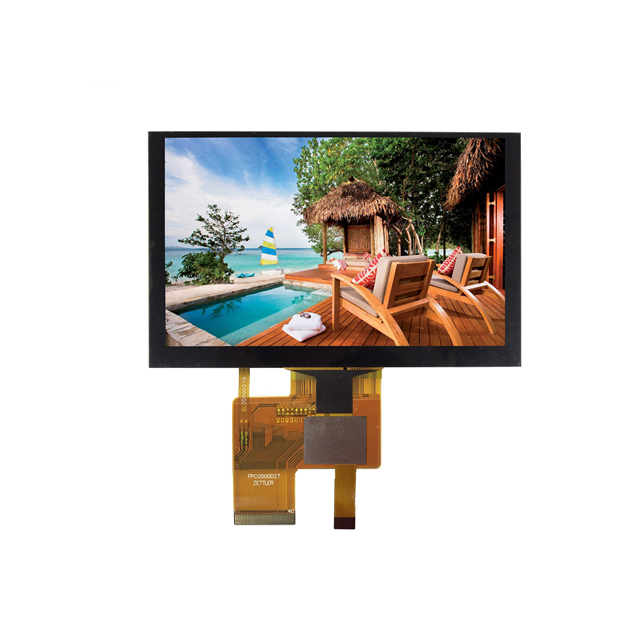

GRAPHIC DISPLAY TFT RGB 5"

Deep-Dive with AI

Search across all available documentation for this part.

ATM0500D27-CT

Active

AZ Displays

GRAPHIC DISPLAY TFT RGB 5"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.70
		30	$ 48.18
		120	$ 45.15

Description

General part information

ATM0500 Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 24-Bit (RGB) 5" (127.00mm) 800 x 480

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATM0500D27-CT	ATM0500 Series

Background Color	White	White, Black
Backlight	LED	LED
Diagonal Screen Size [custom]	127 mm	127 mm
Diagonal Screen Size [custom]	5 in	5 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, IPS (In-Plane Switching), TFT - Color
Dot Pitch [x]	0.05 mm	0.05 mm
Dot Pitch [y]	0.14 mm	0.14 mm
Dot Pixels [x]	800	800
Dot Pixels [y]	480	480
Dot Size	-	0.14 mm
Dot Size [x]	0.14 mm	0.14 mm
Dot Size [y]	0.14 mm	0.05 - 0.14 mm
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel	Parallel, 24-Bit (RGB), MIPI
Interface	24 Bit	24 Bit
Touchscreen	Capacitive	Capacitive, Resistive
Viewing Area [x]	108 mm	108 - 110.6 mm
Viewing Area [y]	64.8 mm	64.8 - 67.4 mm

ATM0500 Series

GRAPHIC DISPLAY TFT RGB 5"

Part	Background Color	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [x]	Viewing Area [y]	Display Mode	Interface	Interface	Graphics Color	Backlight	Dot Size [x]	Dot Size [y]	Touchscreen	Dot Pitch [y]	Dot Pitch [x]	Display Type	Dot Size [z]
AZ Displays ATM0500D27-CT	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Capacitive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27K-CT	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Capacitive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27K -T	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Resistive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27K	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED		0.05 mm		0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)	0.14 mm
AZ Displays ATM0500H1	Black	127 mm	5 in	480	800	110.6 mm	67.4 mm	Transmissive	24-Bit (RGB)		Blue, Green, Red	LED				0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500M27K	Black	127 mm	5 in	480	800	110.6 mm	67.4 mm	Transmissive	MIPI		Blue, Green, Red	LED				0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27K-T		127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Resistive	0.14 mm	0.05 mm	TFT - Color
AZ Displays ATM0500H1-CT	Black	127 mm	5 in	480	800	108.8 mm	65.6 mm	Transmissive	24-Bit (RGB)		Blue, Green, Red	LED			Capacitive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27B-T	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Resistive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
