PMS9P1B05M2QE

Active

TE Connectivity Raychem Cable Protection

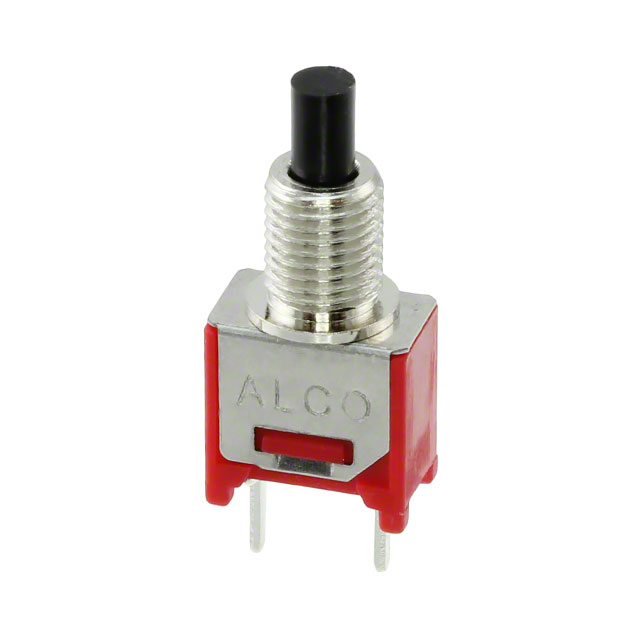

SWITCH PUSH SPST-NO 3A 120V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	PMS9P1B05M2QE

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Features	Sealed
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Voltage Rating - AC	Actuator Type	Switch Function	Mounting Type	Actuator Marking	Current Rating (Amps)	Color - Actuator/Cap	Features	Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Panel Cutout Dimensions [diameter]
TE Connectivity Raychem Cable Protection PMS9P1B07M6RE	20 V	Round Plunger	Off-Mom	Through Hole Right Angle	No Marking	0.4 VA	Black	Sealed	Standard	20 V	-30 ░C	85 °C	SPST-NO	PC Pin
TE Connectivity Raychem Cable Protection PMS9P1B05M2QE	120 V	Round Plunger	Off-Mom	Panel Mount Rear	No Marking	3 A	Black	Sealed	Standard	28 V	-30 ░C	85 °C	SPST-NO	PC Pin	4.95 mm
TE Connectivity Raychem Cable Protection PMS9P1B08M6RE	20 V	Round Plunger	Off-Mom	Through Hole Right Angle	No Marking	0.4 VA	Black	Sealed	Standard	20 V	-30 ░C	85 °C	SPST-NO	PC Pin
TE Connectivity Raychem Cable Protection PMS9P1B09M6RE	20 V	Round Plunger	Off-Mom	Panel Mount Rear Right Angle	No Marking	0.4 VA	Black	Sealed	Standard	20 V	-30 ░C	85 °C	SPST-NO	PC Pin	0.25 in
TE Connectivity Raychem Cable Protection PMS9P1B09M2QE	120 V	Round Plunger	Off-Mom	Panel Mount Rear	No Marking	3 A	Black	Sealed	Standard	28 V	-30 ░C	85 °C	SPST-NO	PC Pin	0.25 in
TE Connectivity Raychem Cable Protection PMS9P1B10M2QE	120 V	Round Plunger	Off-Mom	Through Hole	No Marking	3 A	Black	Sealed	Standard	28 V	-30 ░C	85 °C	SPST-NO	PC Pin
TE Connectivity Raychem Cable Protection PMS9P1B08M2RE	20 V	Round Plunger	Off-Mom	Through Hole	No Marking	0.4 VA	Black	Sealed	Standard	20 V	-30 ░C	85 °C	SPST-NO	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
