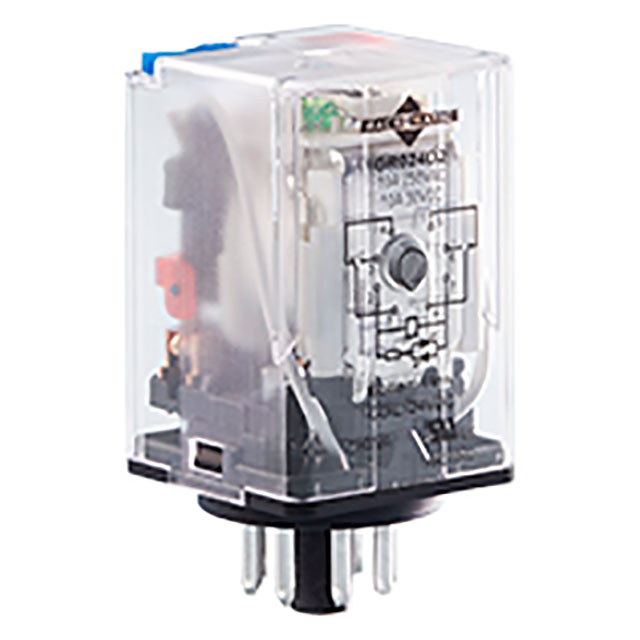

GR024D2

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 10A 24V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 10A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GR024D2	GR024D Series

Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 VDC
Contact Form	DPDT (2 Form C)	3PDT (3 Form C), DPDT (2 Form C)
Contact Rating (Current)	10 A	10 A
Features	Test Button, Lighted Indicator	Test Button, Lighted Indicator
Mounting Type	Socketable	Socketable
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC	30 - 250 VDC
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 11 Pin (Octal), Plug In, 8 Pin (Octal)

RELAY GEN PURPOSE 3PDT 10A 24V

Part	Coil Voltage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Termination Style	Contact Rating (Current)	Switching Voltage [Max]	Features	Relay Type	Contact Form
Macromatic Industrial Controls GR024D3	24 VDC	Socketable	-40 °C	55 °C	Non Latching	Plug In, 11 Pin (Octal)	10 A	30 VDC, 250 VAC	Lighted Indicator, Test Button	General Purpose	3PDT (3 Form C)
Macromatic Industrial Controls GR024D3T	24 VDC	Socketable	-40 °C	55 °C	Non Latching	Plug In, 11 Pin (Octal)	10 A	30 VDC, 250 VAC	Lighted Indicator	General Purpose	3PDT (3 Form C)
Macromatic Industrial Controls GR024D2T	24 VDC	Socketable	-40 °C	55 °C	Non Latching	Plug In, 8 Pin (Octal)	10 A	30 VDC, 250 VAC	Lighted Indicator	General Purpose	DPDT (2 Form C)
Macromatic Industrial Controls GR024D2	24 VDC	Socketable	-40 °C	55 °C	Non Latching	Plug In, 8 Pin (Octal)	10 A	30 VDC, 250 VAC	Lighted Indicator, Test Button	General Purpose	DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.03

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable

Technical documentation and resources

No documents available
