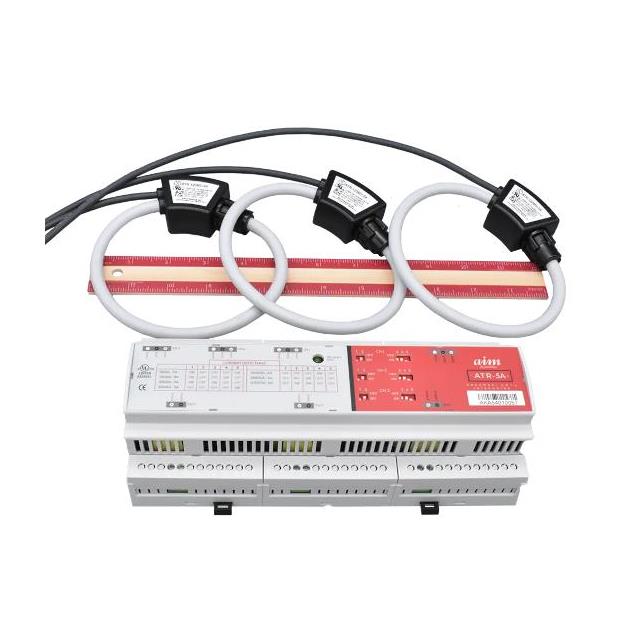

ATR-5A-04
ActiveAim Dynamics
TRANSDUCER 3PH 60000A:5A 4"COIL
ATR-5A-04
ActiveAim Dynamics
TRANSDUCER 3PH 60000A:5A 4"COIL
Description
General part information
ATR-5A-04
AC Current Transducer 2.5 ~ 60000A Input 5A Output 24VDC Chassis Mount, DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | ATR-5A-04 |
|---|---|
| Accuracy | 0.01 % |
| Approval Agency | CE, UL |
| Input Current (Max) | 60000 A |
| Input Current (Min) | 2.5 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Output Current | 5 A |
| Response Time | 10 ms |
| Termination Style | Screw Terminal |
| Type | AC Current Transducer |
| Voltage - Supply | 24 VDC |
