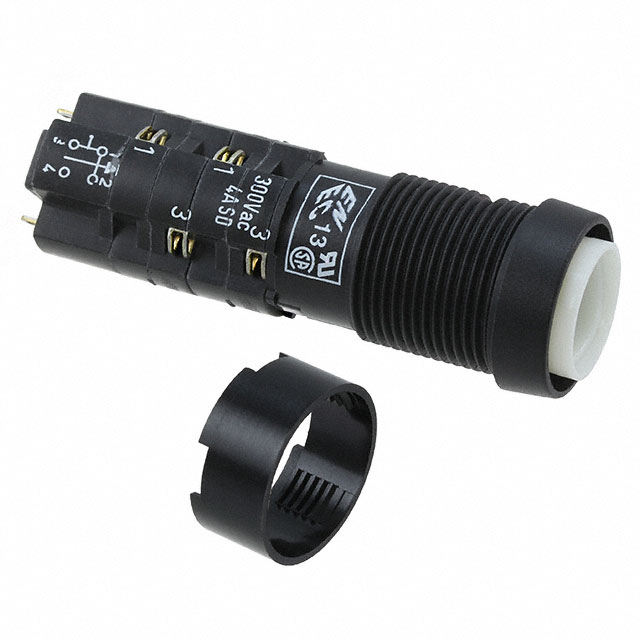

1.15.108.552/0000
ActiveRAFI USA
SWITCH PUSH 4PST 4A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.15.108.552/0000
ActiveRAFI USA
SWITCH PUSH 4PST 4A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1.15.108.552/0000 | 1.15108 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round, Button | Round, Button, Rectangular, Button, Flat Key, Square |
| Angle of Throw | - | 45 - 90 ° |
| Circuit | 4PST-2NO/2NC | DPST-NO/NC, 4PST-2NO/2NC |
| Contact Material | - | Silver (Ag) |
| Contact Timing | - | Not Specified |
| Current Rating (Amps) | 4 A, 200 mA | 4 - 200 A |
| Electrical Life | - | 50000 Cycles |
| Features | - | IP40 |
| Ingress Protection | IP40 | IP65 - Dust Tight, Water Resistant, IP40 |
| Key Removable Positions | - | Center, All |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Number of Positions | - | 2 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 16.2 mm | 16.2 mm |
| Switch Function | On-Off, Off-On | Off-Mom, On-Mom, On-Off, Off-On |
| Termination Style | Solder Lug | Solder Lug |
| Type | Illuminated, Standard | Illuminated, Standard |
| Voltage Rating - AC | 250 V | 250 V |
| Voltage Rating - DC | 230 V | 230 V |
1.15108 Series
SWITCH PUSH DPST 4A 250V
| Part | Voltage Rating - AC | Type | Actuator Marking | Termination Style | Actuator Type | Panel Cutout Dimensions [diameter] | Mounting Type | Ingress Protection | Voltage Rating - DC | Switch Function | Circuit | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Angle of Throw | Contact Timing | Number of Positions | Features | Key Removable Positions | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RAFI USA 1.15.108.476/0000 | 250 V | Illuminated, Standard | No Marking | Solder Lug | Button, Round | 16.2 mm | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 230 V | Off-Mom, On-Mom | DPST-NO/NC | 4 A, 200 mA | 70 °C | -25 °C | |||||||
RAFI USA 1.15.108.977/0000 | 250 V | Illuminated, Standard | No Marking | Solder Lug | Button, Round | 16.2 mm | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 230 V | Off-On, On-Off | 4PST-2NO/2NC | 4 A, 200 mA | 70 °C | -25 °C | 50000 Cycles | ||||||
RAFI USA 1.15.108.452/0000 | 250 V | Illuminated, Standard | No Marking | Solder Lug | Button, Round | 16.2 mm | Panel Mount, Front | IP40 | 230 V | Off-Mom, On-Mom | 4PST-2NO/2NC | 4 A, 200 mA | 70 °C | -25 °C | |||||||
RAFI USA 1.15.108.552/0000 | 250 V | Illuminated, Standard | No Marking | Solder Lug | Button, Round | 16.2 mm | Panel Mount, Front | IP40 | 230 V | Off-On, On-Off | 4PST-2NO/2NC | 4 A, 200 mA | 70 °C | -25 °C | |||||||
RAFI USA 1.15.108.176/0000 | 250 V | Illuminated, Standard | No Marking | Solder Lug | Rectangular, Button | 16.2 mm | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 230 V | Off-On, On-Off | DPST-NO/NC | 4 A, 200 mA | 70 °C | -25 °C | 50000 Cycles | ||||||
RAFI USA 1.15.108.152/0000 | 250 V | Illuminated, Standard | No Marking | Solder Lug | Rectangular, Button | 16.2 mm | Panel Mount, Front | IP40 | 230 V | Off-On, On-Off | 4PST-2NO/2NC | 4 A, 200 mA | 70 °C | -25 °C | |||||||
RAFI USA 1.15.108.661/0100 | 250 V | Solder Lug | Flat Key | 16.2 mm | 230 V | Off-Mom, On-Mom | DPST-NO/NC | 4 A, 200 mA | 70 °C | -25 °C | 90 ° | Not Specified | 2 | IP40 | Center | Silver (Ag) | |||||
RAFI USA 1.15.108.941/0000 | 250 V | Solder Lug | Flat Key | 16.2 mm | 230 V | Off-Mom, On-Mom | DPST-NO/NC | 4 A, 200 mA | 70 °C | -25 °C | 50000 Cycles | 45 ° | Not Specified | 2 | IP40 | Center | Silver (Ag) | ||||
RAFI USA 1.15.108.377/0000 | 250 V | Illuminated, Standard | No Marking | Solder Lug | 16.2 mm | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 230 V | Off-On, On-Off | 4PST-2NO/2NC | 4 A, 200 mA | 70 °C | -25 °C | ||||||||
RAFI USA 1.15.108.177/0000 | 250 V | Illuminated, Standard | No Marking | Solder Lug | Rectangular, Button | 16.2 mm | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | 230 V | Off-On, On-Off | 4PST-2NO/2NC | 4 A, 200 mA | 70 °C | -25 °C | 50000 Cycles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 37.87 | |
Description
General part information
1.15108 Series
Pushbutton Switch 4PST-2NO/2NC Standard, Illuminated Panel Mount, Front
