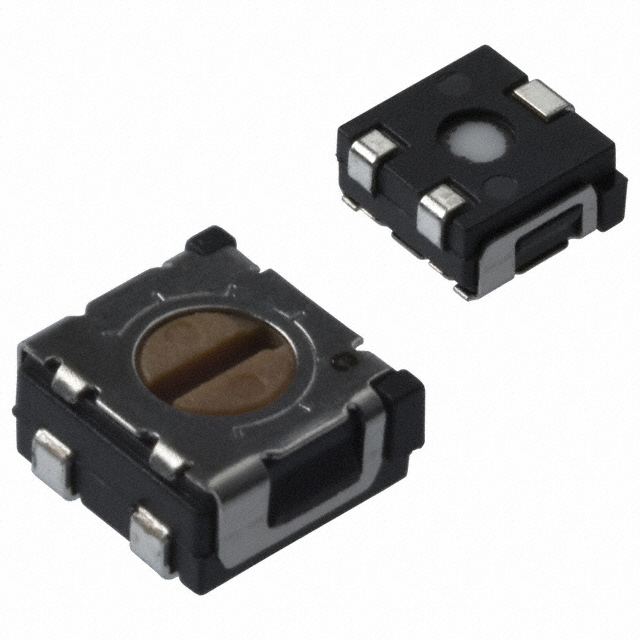

ST-4ETA503

Active

Nidec Components Corporation

TRIMMER 50K OHM 0.25W J LEAD TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ST-4ETA503

Active

Nidec Components Corporation

TRIMMER 50K OHM 0.25W J LEAD TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ST-4ETA503

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	50 kOhms
Resistive Material	Cermet
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.177 "
Size / Dimension [y]	4.5 mm
Temperature Coefficient	100 ppm/°C
Termination Style	J Lead
Tolerance	20 %

ST4ETA Series

Part	Power (Watts)	Power (Watts)	Resistance	Number of Turns	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Adjustment Type	Temperature Coefficient	Resistive Material	Tolerance	Termination Style	Mounting Type
Nidec Components Corporation ST-4ETA103	0.25 W	250 mW	10000 Ohms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA105	0.25 W	250 mW	1 MOhms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA101	0.25 W	250 mW	100 Ohms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA503	0.25 W	250 mW	50 kOhms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA501	0.25 W	250 mW	500 Ohms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA201	0.25 W	250 mW	200 Ohms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA202	0.25 W	250 mW	2 kOhms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA102	0.25 W	250 mW	1000 Ohms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA100	0.25 W	250 mW	10 Ohms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	250 ppm/°C	Cermet	20 %	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA104	0.25 W	250 mW	100 kOhms	1	0.197 in	0.177 "	5 mm	4.5 mm	Top Adjustment	100 ppm/°C	Cermet	20 %	J Lead	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.80
		10	$ 1.58
		25	$ 1.42
		50	$ 1.36
		100	$ 1.31
		250	$ 1.25
	Digi-Reel®	1	$ 1.80
		10	$ 1.58
		25	$ 1.42
		50	$ 1.36
		100	$ 1.31
		250	$ 1.25
	Tape & Reel (TR)	500	$ 1.04
		1000	$ 0.98
		2500	$ 0.85
		5000	$ 0.82
		12500	$ 0.76

Description

General part information

ST4ETA Series

50 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
