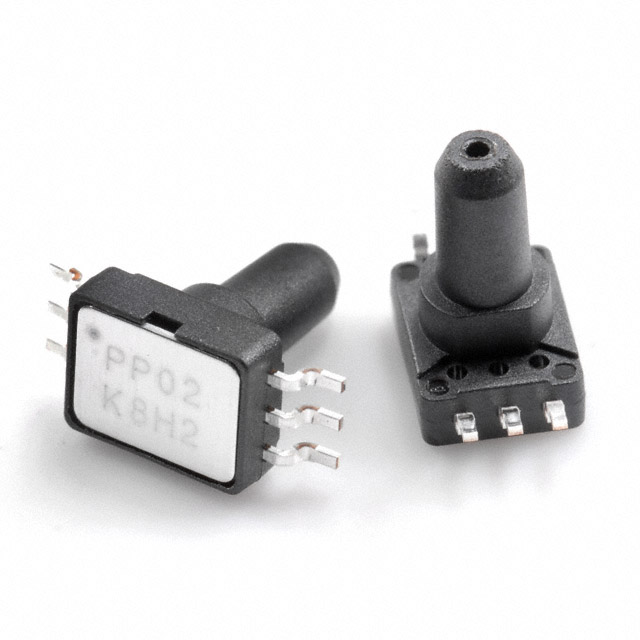

2SMPP-02

Active

Omron Electronics Inc-EMC Div

SENSOR 5.37PSIG 0.1" .031V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SENSOR 5.37PSIG 0.1" .031V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 5.37PSI (37kPa) Vented Gauge Male - 0.1" (2.59mm) Tube 0 mV ~ 31 mV 6-SMD Module

Technical documentation and resources

Part	Package / Case	Operating Pressure	Operating Pressure	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Output [Min]	Output [Max]	Output Type	Pressure Type	Port Size	Port Size	Mounting Type	Accuracy	Applications	Maximum Pressure [Min]	Maximum Pressure [Min]
Omron Electronics Inc-EMC Div 2SMPP-02	6-SMD Module	37 kPa	5.37 PSI	Gull Wing	7.69 PSI	53 kPa	Barbless	0 mV	31 mV	Analog Voltage	Vented Gauge	0.1 "	2.59 mm	Surface Mount	0.8 %	Board Mount
Omron Electronics Inc-EMC Div 2SMPP03	6-SMD Module	50 kPa	7.25 PSI	Gull Wing	17.4 PSI	120 kPa	Barbless	-43 mV	42 mV	Analog Voltage	Compound	0.1 "	2.59 mm	Surface Mount	0.5 %	Board Mount	-80 kPa	-11.6 PSI
