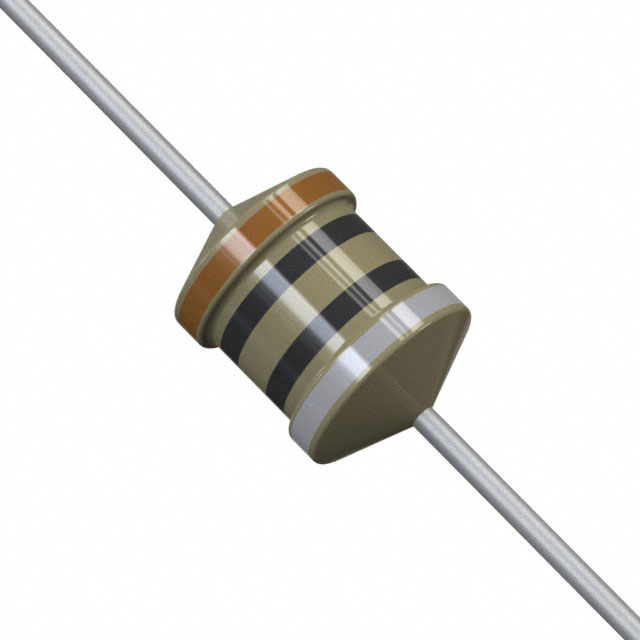

B82144F2103K000
ActiveEPCOS - TDK Electronics
FIXED IND 10UH 2.45A 0.12OHM TH
B82144F2103K000
ActiveEPCOS - TDK Electronics
FIXED IND 10UH 2.45A 0.12OHM TH
Description
General part information
B82144F2103K000
10 µH Unshielded Drum Core, Wirewound Inductor 2.45 A 120mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144F2103K000 |
|---|---|
| Current - Saturation (Isat) | 2.85 A |
| Current Rating | 2.45 A |
| DC Resistance (DCR) (Max) | 120 mOhm |
| Frequency - Self Resonant | 22 MHz |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 40 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.256 in |
| Size / Dimension Length | 0.362 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
